Deltron SA2-6 Ball Slide
New
In stock1 unitReady to ship
Ball Slide
The Deltron SA2-6 ball slide provides 150 mm travel with high accuracy and smooth linear motion. Built for precision applications with a 203 mm length and compact profile for space-saving integration.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

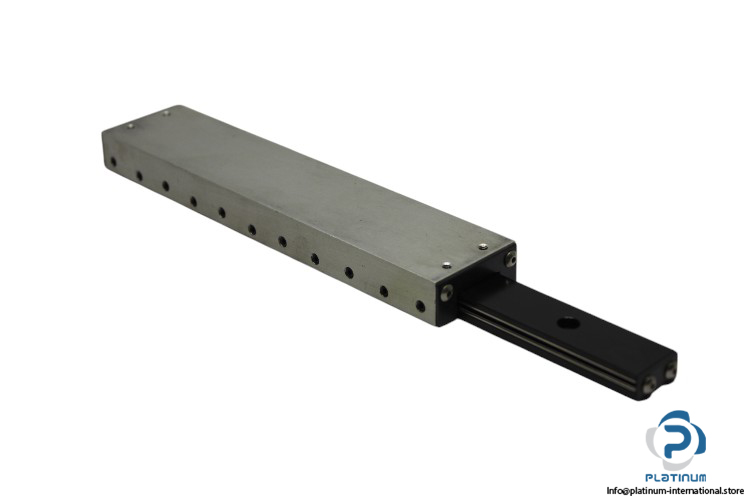

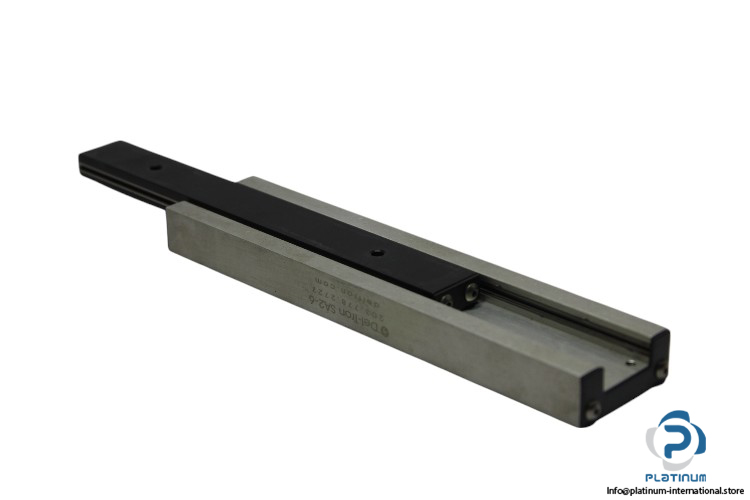

Deltron SA2-6 Ball Slide
The Deltron SA2-6 Ball Slide is a high-precision linear motion solution designed for smooth and accurate movement in compact assemblies. Manufactured with high-quality materials, it features a reliable design suited for automation, inspection, and positioning systems where precise travel and stability are essential.
Manufacturer: Deltron
Type: Ball Slide
Model: SA2-6
Part No.: 203.778.2727

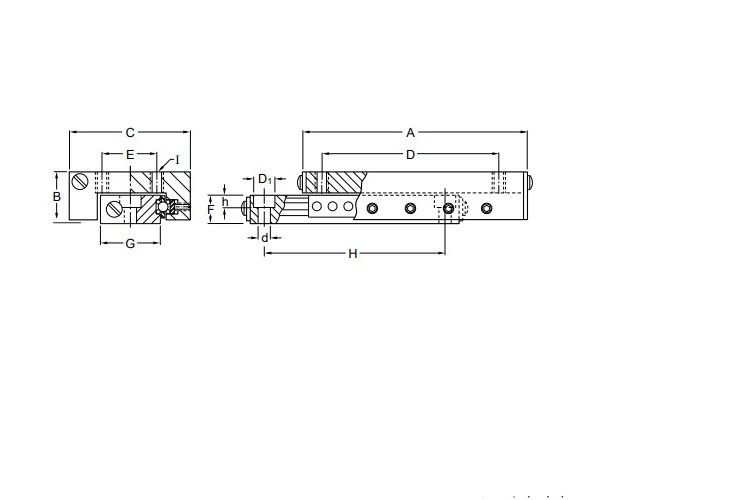

| Length (A) | 203 mm |
| Height (B) | 19 mm |
| Width (C) | 44 mm |
| Travel | 150 mm |
| Hole Spacing | 126 mm |
| Height (F) | 10.2 mm |
| Width (G) | 22.2 mm |
| E | 20 mm |
| D | 190 mm |
