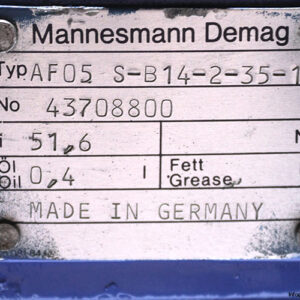

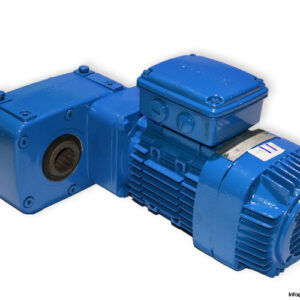

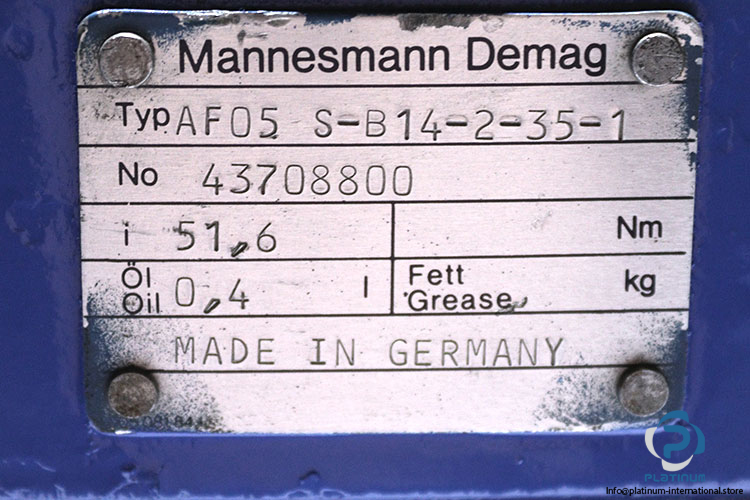

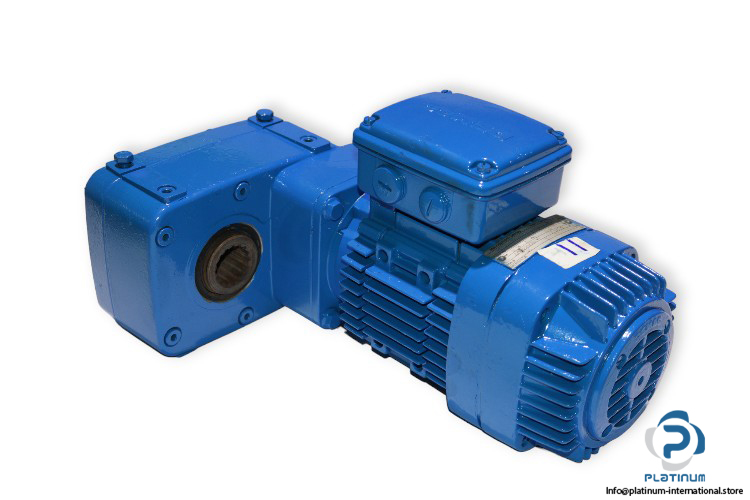

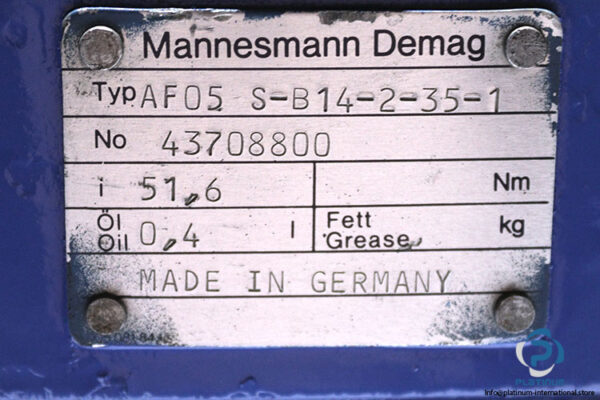

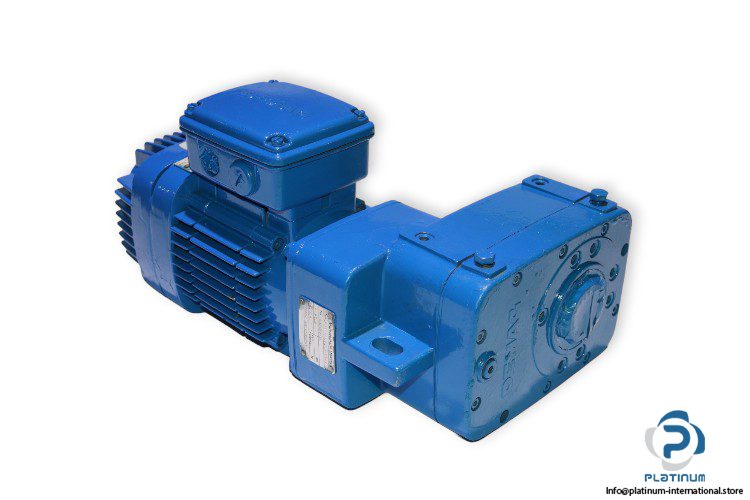

Demag AF05 S-B14-2-35-1 Gear Motor

Manufacturer: Demag
Type: Gear Motors
Model: AF05S-B14-2-35-1
Motor Nr.: 43708800

Ratio [i]: 51.6
Oil [L]: 0.4

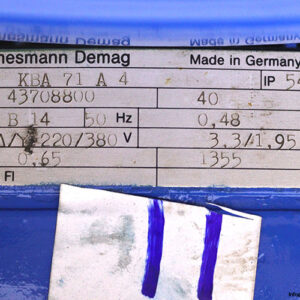

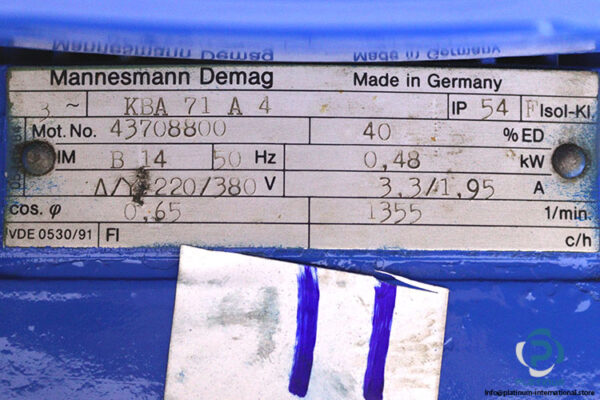

Attachment: DEMAG KBA 71 A 4 AC MOTOR
Manufacturer: Demag
Type: AC Motors
Model: KBA 71 A 4
Motor Speed [r/min]: 1355
Motor Power [kW]: 0.48
Rated Voltage [V]: 220/380
Nominal Current [A]: 3.3/1.95
Motor Frequency [Hz]: 50
Cos Phi: 0.65
Thermal Class: F
Protection Class [IP]: 54
Mounting Position [IM]: B14
