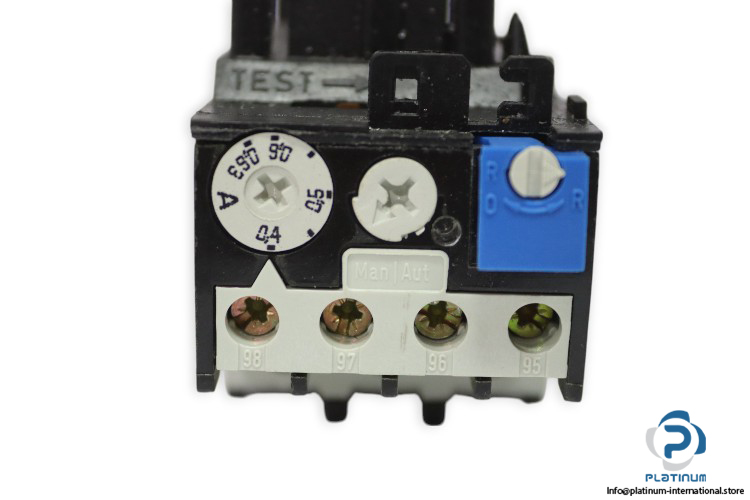

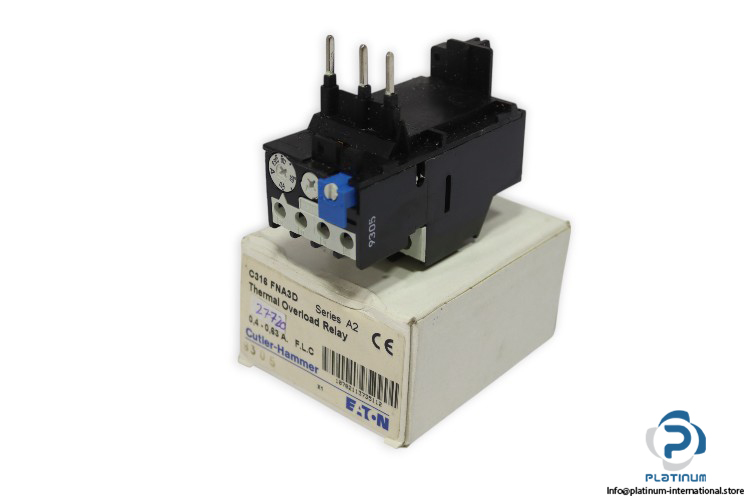

Eaton C316 FNA3D Thermal Overload Relay
New
In stock7 unitsReady to ship
THERMAL OVERLOAD RELAY
Three-pole thermal overload relay with adjustable full-load current, 690 V insulation rating, and Class 10 trip protection. Ideal for use with Eaton CE contactors and C306TB1 mounting systems.103AdjustableC306TB1C316CE15ANClassCompatibleEatonFNA3FNA3DIndustrialmotorMountingOverloadPoleProtectionRelayThermal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

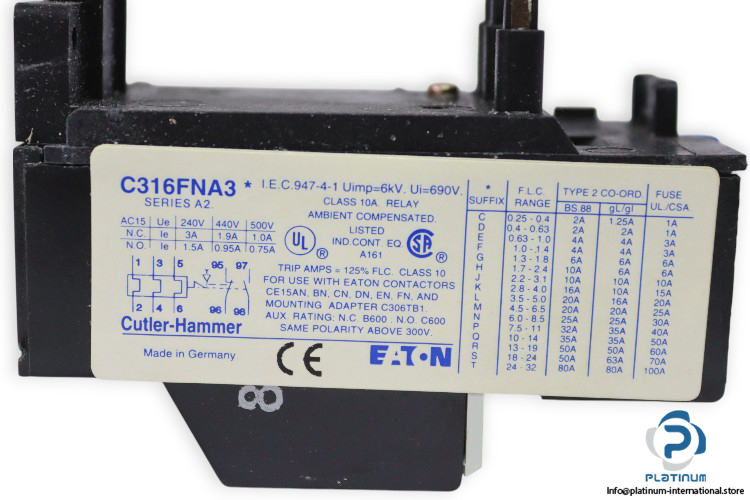

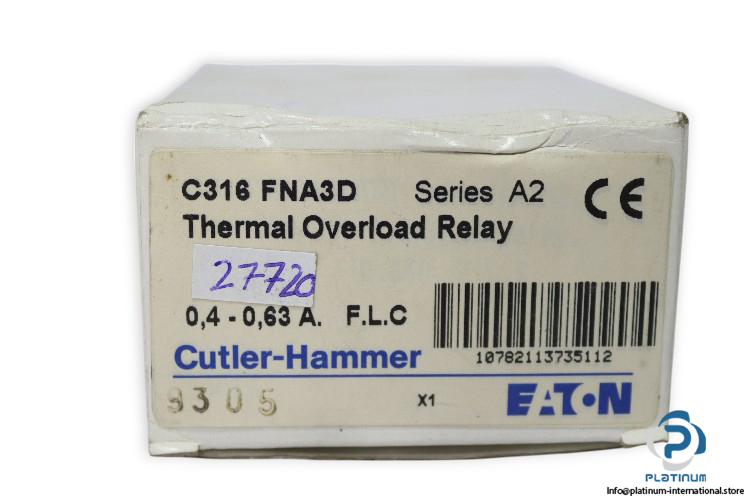

EATON C316 FNA3D / C316 FNA3 THERMAL OVERLOAD RELAY
This Eaton Cutler-Hammer thermal overload relay is a precision-engineered protective device designed for safeguarding motors against overload conditions. With wide full-load current adjustment, high insulation voltage, and compatibility with Eaton CE series contactors, it ensures reliable performance in demanding control panel environments.
Manufacturer: Eaton Cutler-Hammer
Type: Thermal Overload Relay
Model: C316 FNA3D / C316 FNA3
Serial No.: 10782113735112
Code: X1 / 9305
Series: A2
| No of Poles | 3 |
| Fuse | 2 A |
| Full Load Current | 0.4 to 0.63 A |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current AC15 @ 240 V / 500 V | NC: 3 A / 1 A, NO: 1.5 A / 0.75 A |
| Trip Amps | 125% Full Load Current @ Class 10 |
| Use For | With Eaton contactors (CE15AN, BN, CN, DN, EN, FN) |
| Mounting | Adapter C306TB1 |
| Aux Rating | N.C. B600, N.O. C600 |
| Polarity Above | 300 V |
| Class | 10A Relay |
