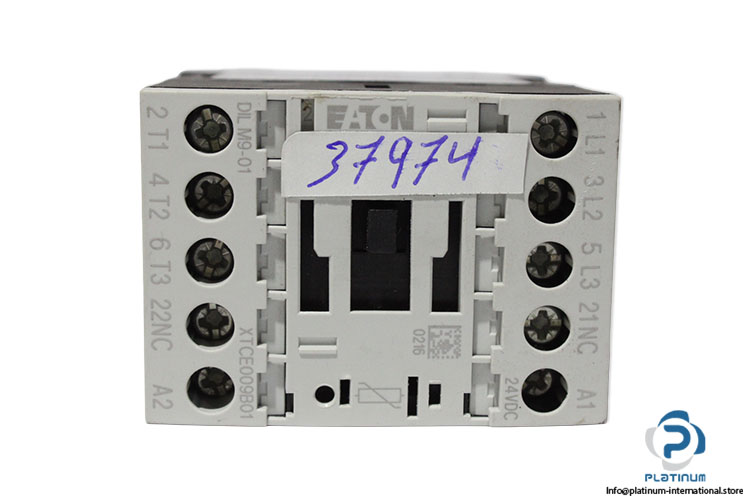

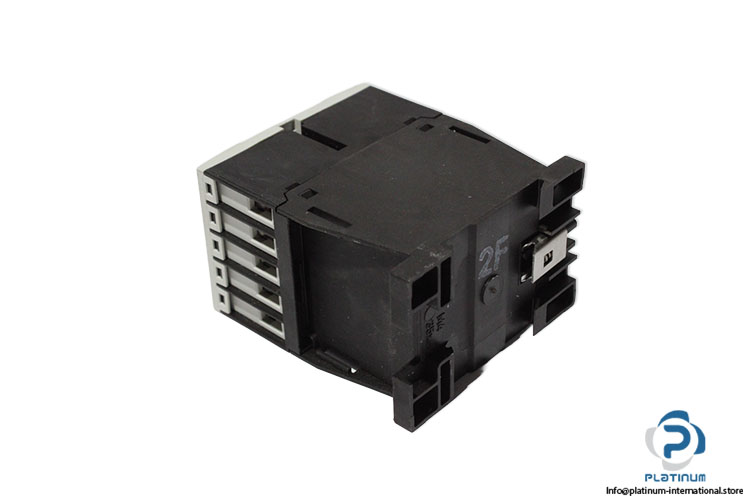

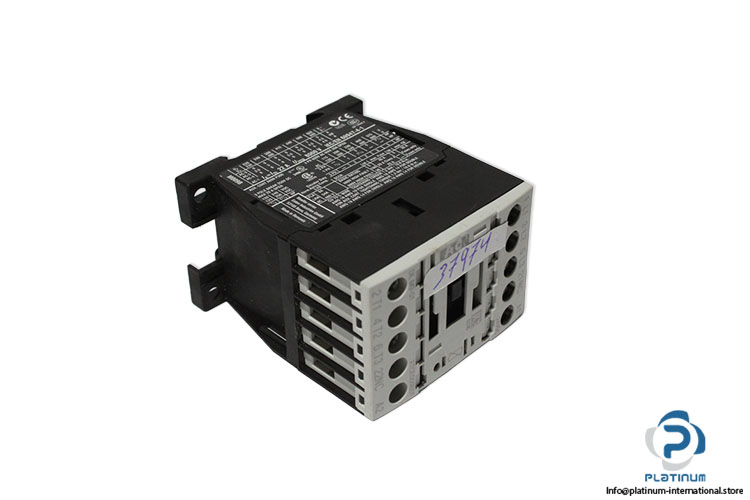

Eaton DILM9-01 Contactor
New
In stock8 unitsReady to ship
Contactor EATON 3-pole industrial contactor with 24 VDC coil, 690 V operational voltage, 9 A AC-3 current, and 1 N/C contact, designed for motor control and industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Coil Voltage | 24 VDC |
| Rated insulation voltage | 690 V |
| Rated operational voltage | 690 V AC |
| Impulse Withstand Voltage | 8000 V AC |
| Current | 22 A |
| Rated breaking capacity at 380/400 V | 90 A |
| Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V | 22 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V, 440 V | 9 A |
| Rated operational current (Ie) at AC-4, 440 V | 6 A |
| Rated operational power at AC-3 | (400 V: 4 kW), (415,440 V: 5,5 kW) |
| Connection technique | Screw terminals |
| Number of poles | 3 poles |
| Contacts | 1 N/C |
| Frame size | FS1 |
| Terminal screw | M3.5 |
| Tightening torque | 1.2 Nm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093903 |
| Weight | 0,3 |
