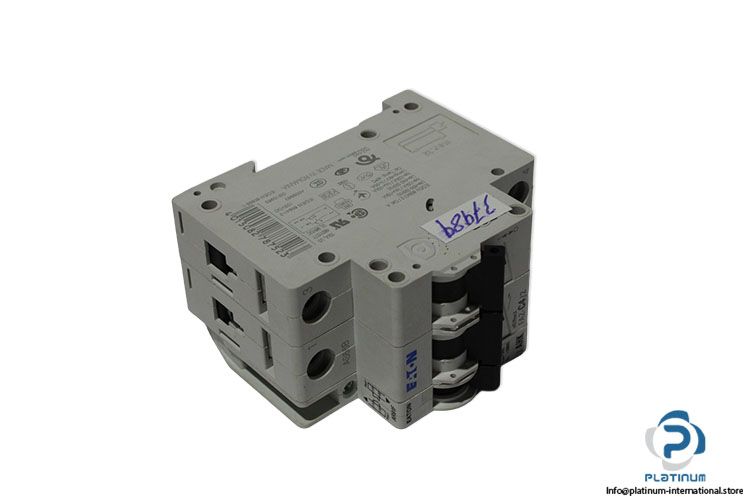

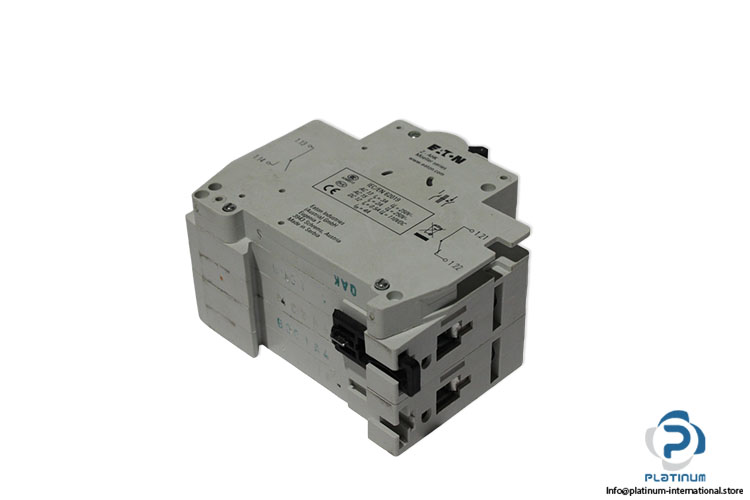

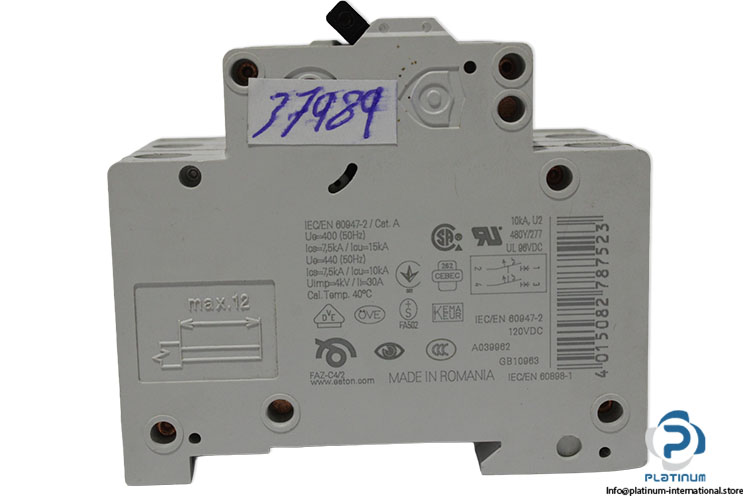

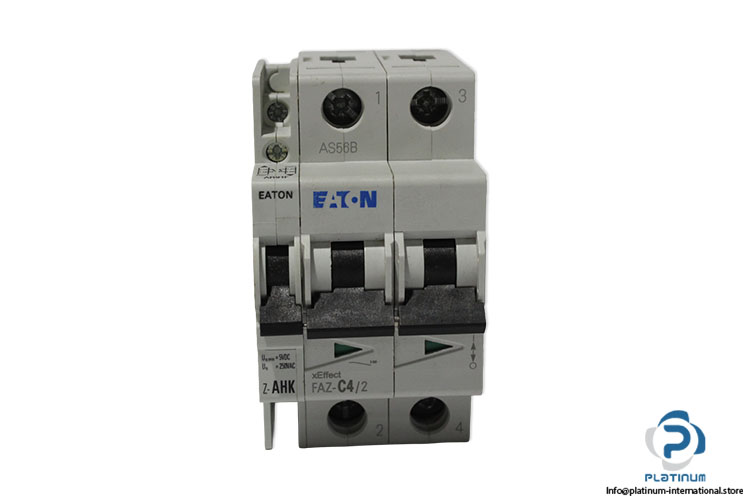

Eaton FAZ-C4/2 / Z-AHK Miniature Circuit Breaker
New
In stock1 unitReady to ship
Miniature Circuit Breaker EATON 2-pole 4 A miniature circuit breaker with C tripping characteristic and Z-AHK auxiliary contact, designed for industrial and commercial switchgear applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Product range | FAZ |
| Number of poles | 2 |
| Tripping characteristic | C |
| Rated current | 4 A |
| Instantaneous Tripping Current (I_i) | 30 A |
| Rated Impulse Withstand Voltage (U_imp) | 4 kV |
| Rated operational voltage | 60 V DC, 240/415 V AC |
| Rated insulation voltage | 440V |
| Rated switching capacity (Icu) | 10 kA |
| Rated short-circuit breaking capacity (Ics) | 7,5 kA |
| Rated short-circuit breaking capacity Icn at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu at 400 V | 15 kA |
| Frequency | 50 – 60 Hz |
| Mounting width per pole | 17,5 mm |
| Enclosure height | 80 mm |
| Degree of Protection | IP20, IP40 |
| Operating ambient temperature | -40 to 75 °C |

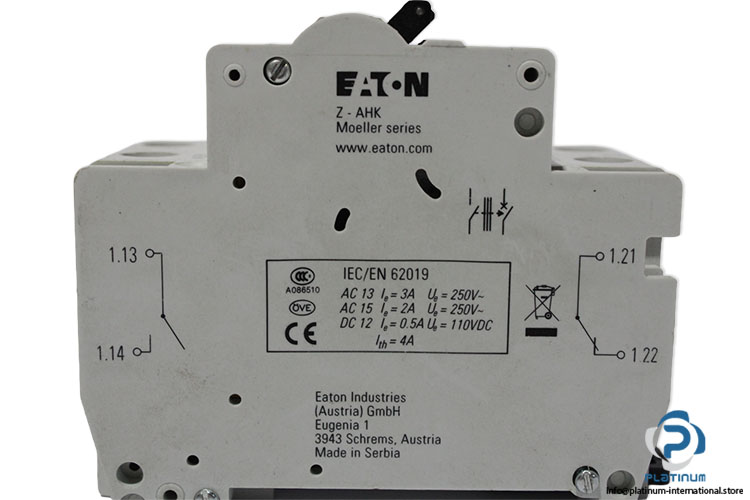

| Attachment Manufacturer | EATON |
| Type of Attachment | Auxiliary contact |
| Attachment Model | Z-AHK |
| Application | Switchgear for industrial and advanced commercial applications |
| Rated voltage | 230 V AC |
| Rated switch current | 3 A |
| Suitable for max. current main contact unit | 4 A |
| No. of contacts (normally closed contacts) | 1 |
| No. of contacts (normally open contacts) | 1 |
| Suitable for max. number of poles main contact unit (total) | 2 |
| Ambient operating temperature | -5 … 40°C |
| Dimensions | 80 x 75 x 8.8 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093920 |
| Weight | 0,08 |
