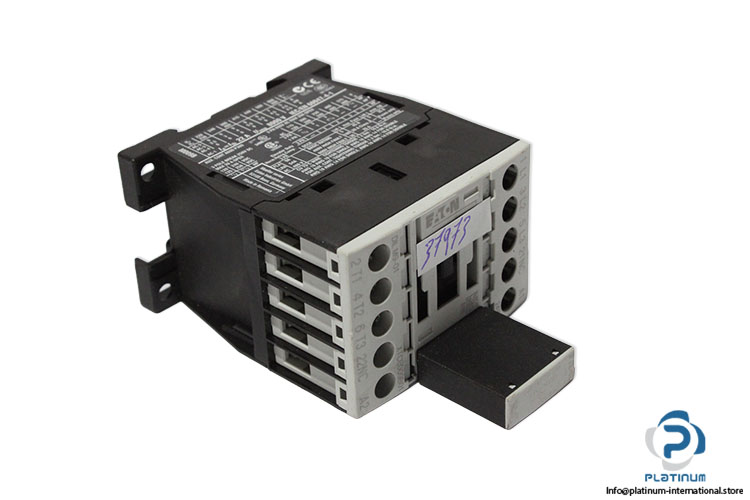

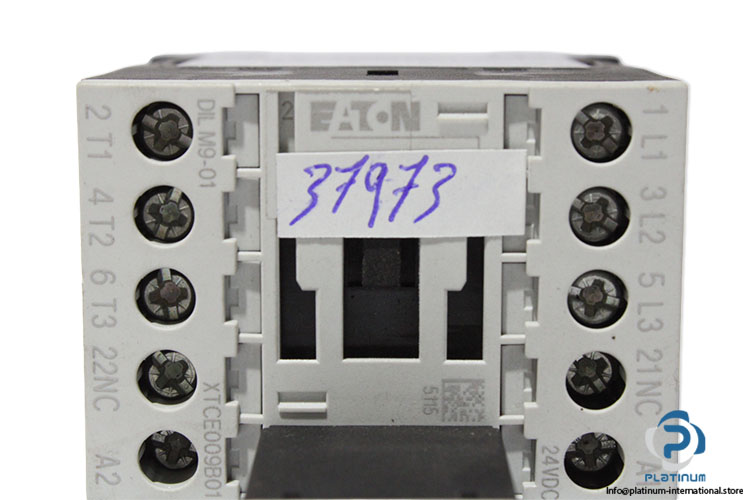

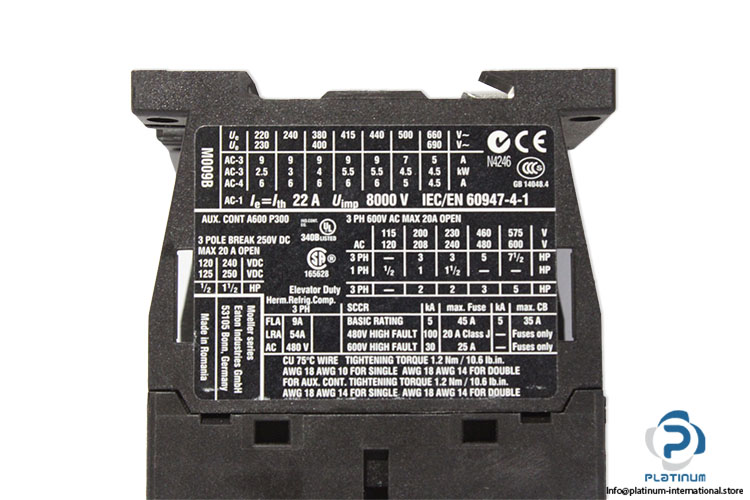

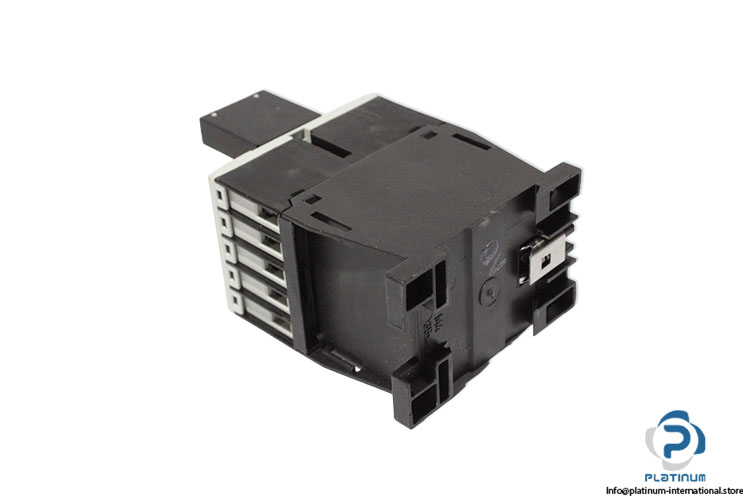

Eaton DILM9-01/ DIL M12-XSPD Contactor
New
In stock1 unitReady to ship
Contactor EATON 3-pole contactor with 24 VDC coil, 22 A current rating, 1 N/C contact, and DIL M12-XSPD diode suppressor, designed for industrial switching and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Coil Voltage | 24 VDC |
| Rated insulation voltage | 690 V |
| Rated operational voltage | 690 V AC |
| Impulse Withstand Voltage | 8000 V AC |
| Current | 22 A |
| Rated breaking capacity at 380/400 V | 90 A |
| Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V | 22 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V, 440 V | 9 A |
| Rated operational current (Ie) at AC-4, 440 V | 6 A |
| Rated operational power at AC-3 | (400 V: 4 kW), (415,440 V: 5,5 kW) |
| Connection technique | Screw terminals |
| Number of poles | 3 poles |
| Contacts | 1 N/C |
| Frame size | FS1 |
| Terminal screw | M3.5 |
| Tightening torque | 1.2 Nm |
| Attachment Manufacturer | EATON |
| Type of Attachment | Diode Suppressor |
| Attachment Model | DIL M12-XSPD (XTCEXDSB) |
| Voltage | 12 – 250V DC |
| Operating ambient temperature | -25 to 60 °C |
| LENGTH/DEPTH | 28 mm |
| HEIGHT | 25 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093914 |
| Weight | 0,3 |
