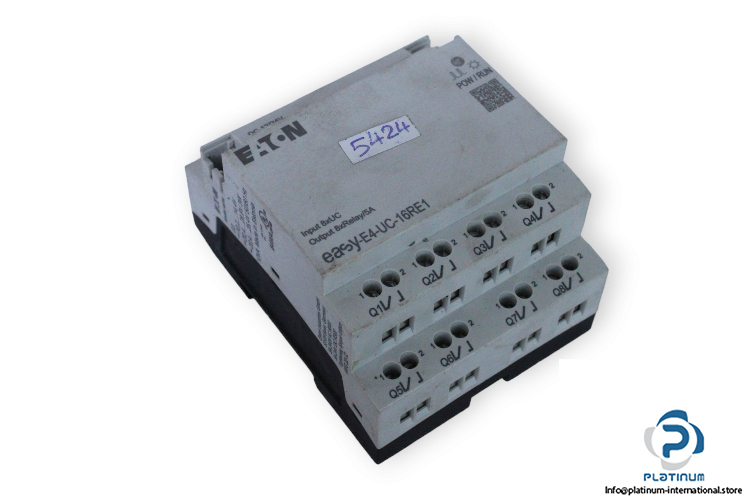

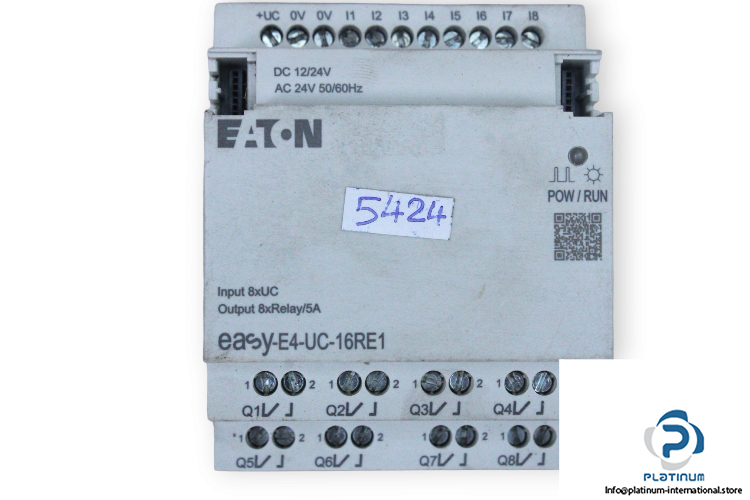

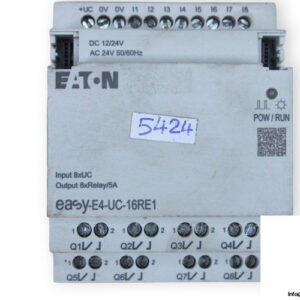

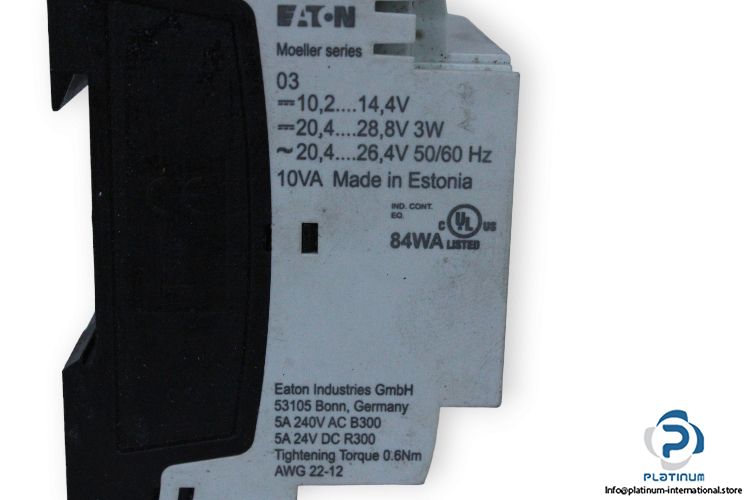

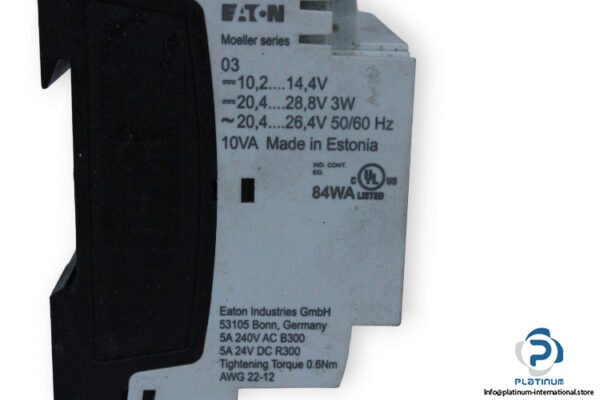

Eaton EASY-E4-UC-16RE1 I/O Expansion Module

Manufacture: Eaton
Type: I/O Expansion Module
Model: EASY-E4-UC-16RE1

Rated insulation voltage (Ui): 240 V
Rated operational voltage: 20.4 … 26.4 V AC , 10.2 … 14.4 V DC, 20.4 … 28.8 V DC, 12/24 V DC, 24 V AC
Input frequency: 50/60 Hz
Input current: 3.3 mA
Power consumption: 3 W
Switching current: 5 A
Rated impulse withstand voltage (Uimp): 6 kV
Connection type: Screw terminal
No. of digital inputs (DI): 8
No. of digital outputs (DO): 8 Relay Output (Normally open)
Tightening torque: 0.6 Nm, Screw terminals
Mounting position: Vertical, Horizontal
Protection degree: IP20
Ambient Operating temperature: -25 … 55°C
Dimensions: 58 x 90 x 72 mm
