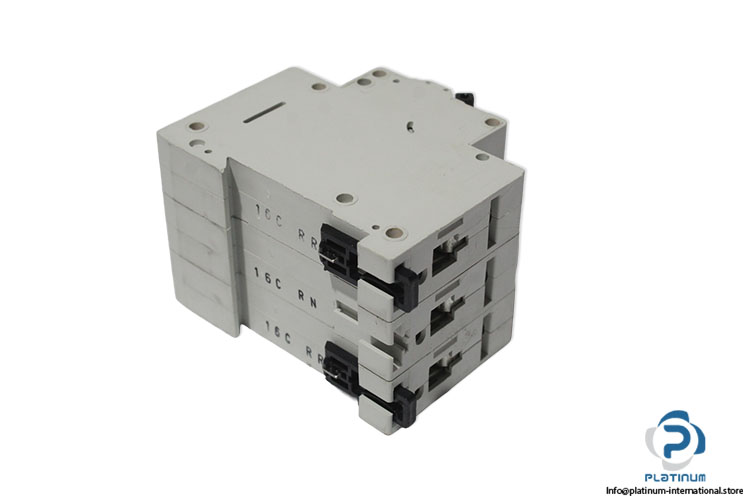

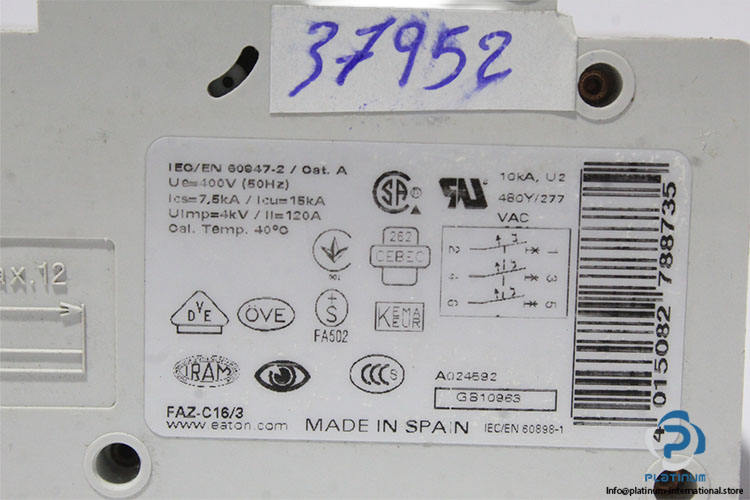

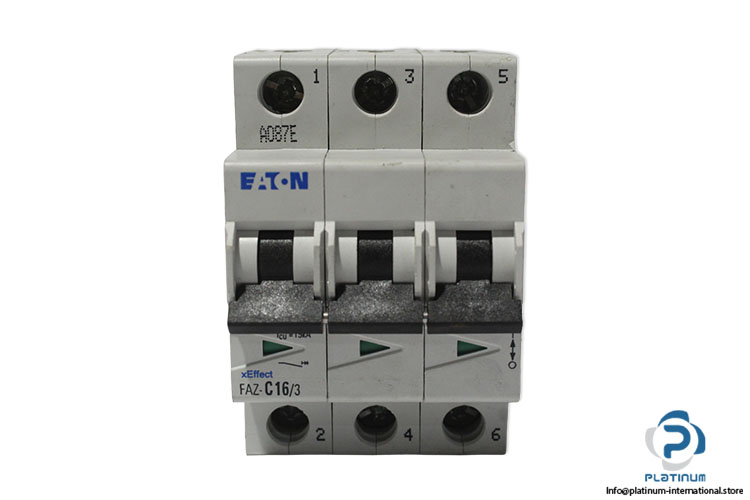

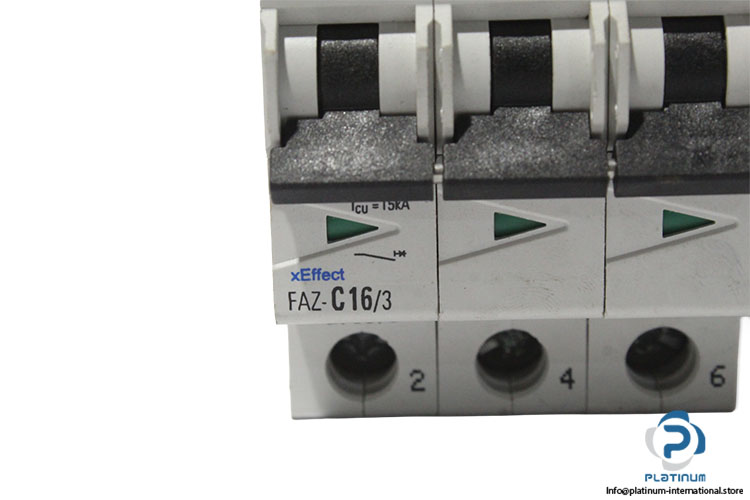

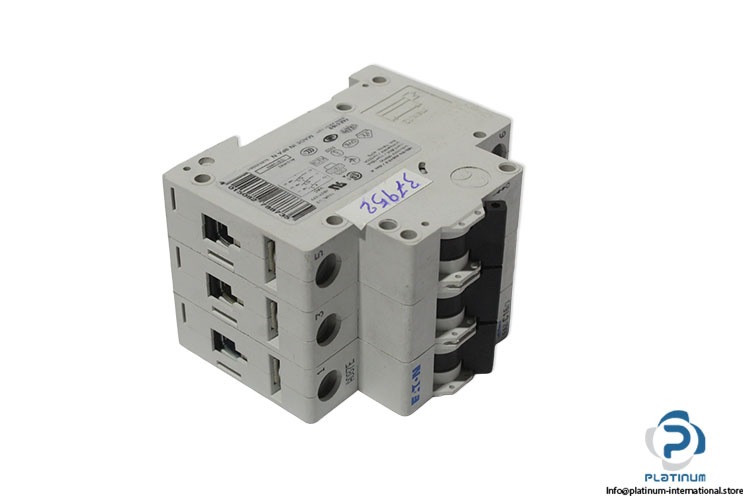

Eaton FAZ-C16/3 Miniature Circuit Breaker
New
In stock1 unitReady to ship
Miniature Circuit Breaker Three-pole EATON FAZ miniature circuit breaker with 16 A rated current, C tripping characteristic, and high short-circuit breaking capacity for industrial electrical protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Product range | FAZ |
| Number of poles | 3 |
| Tripping characteristic | C |
| Rated current | 16 A |
| Instantaneous Tripping Current (I_i) | 120 A |
| Rated Impulse Withstand Voltage (U_imp) | 4 kV |
| Rated operational voltage | 240/415 V AC, 60 V DC |
| Rated insulation voltage | 440V |
| Rated switching capacity (Icu) | 15 kA |
| Rated short-circuit breaking capacity Icn at 400 V | (IEC 60947-2: 15 kA), (EN 60898: 10 kA) |
| Frequency | 50 – 60 Hz |
| Mounting width per pole | 17,5 mm |
| Enclosure height | 80 mm |
| Degree of Protection | IP20, IP40 |
| Operating ambient temperature | -40 to 75 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093885 |
| Weight | 0,31 |
