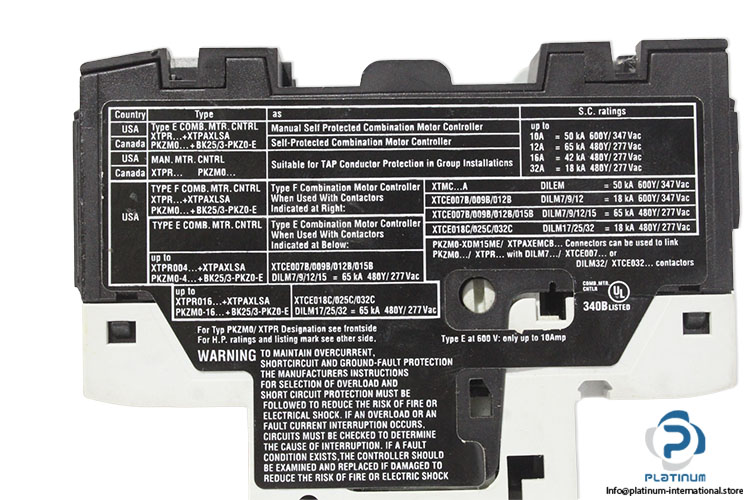

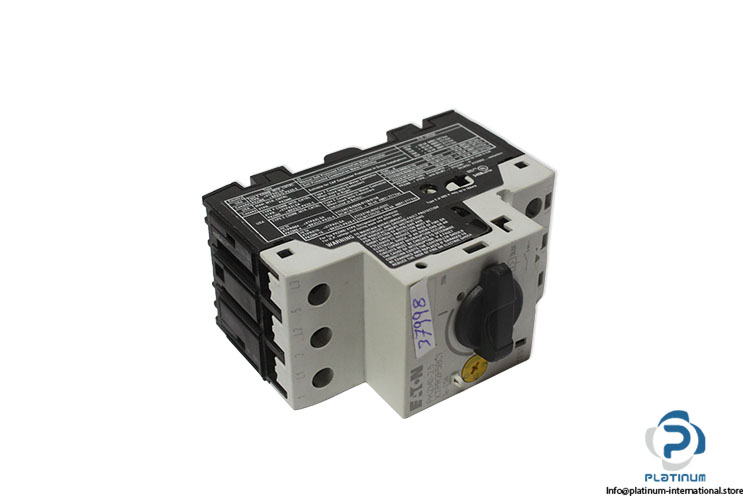

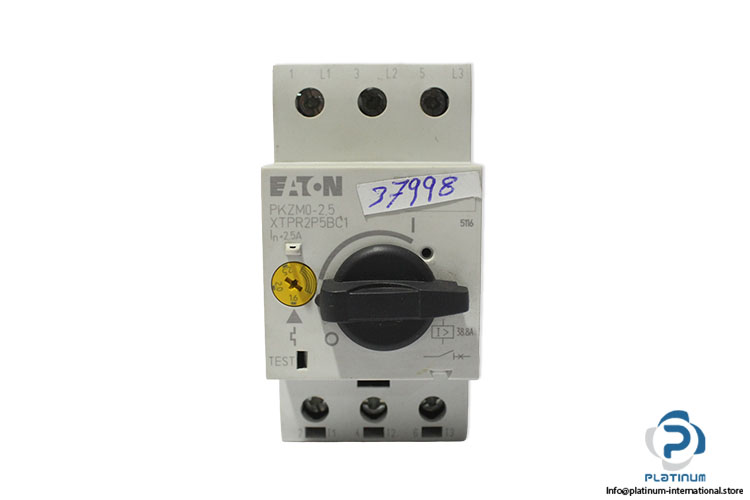

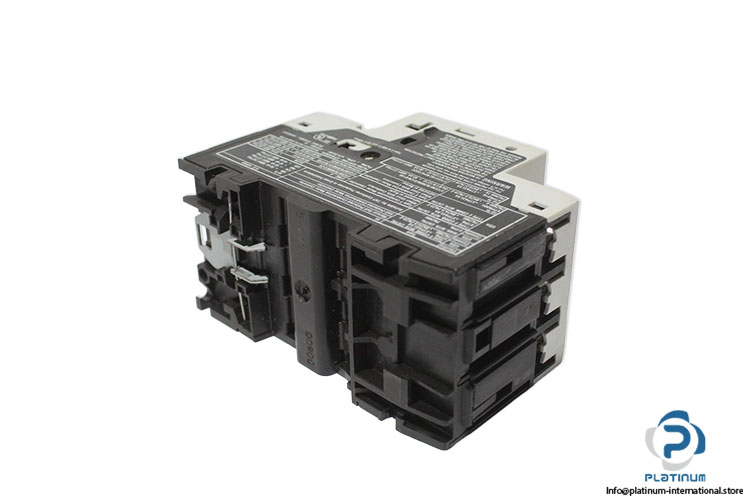

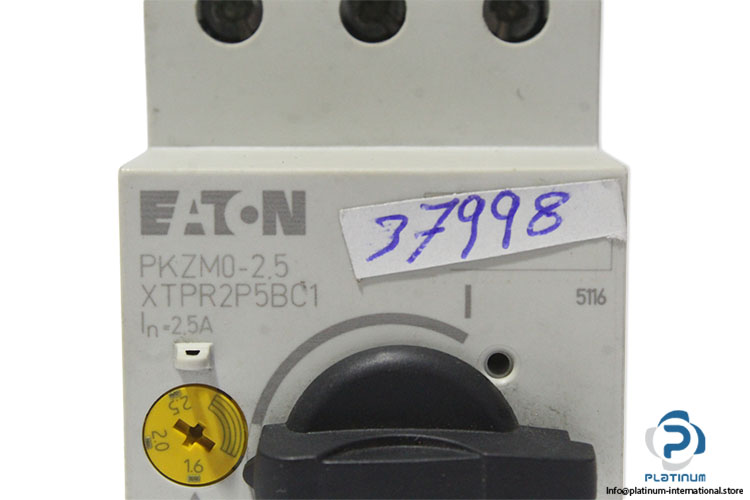

Eaton PKZM0-2,5 Motor-Protective Circuit-Breaker
Used
In stock2 unitsReady to ship
Motor-Protective Circuit-Breaker EATON 3-pole motor-protective circuit-breaker with 1,6 to 2,5 A adjustable current range, 690 V operational voltage, and IP20 protection for industrial motor protection applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Rated Operational Voltage (Ue) | 690 V |
| Rated Operational Current | 1,6 to 2,5 A |
| Frequency | 50 … 60 Hz |
| Rated Impulse withstand Voltage (Uimp) | 6000 V AC |
| Rated Operational Power AC-3 | (380/400 V: 0,75 kW) |
| Rated short-circuit breaking capacity (Ics) | (400V AC: 150 kA), (440V AC: 50 kA) |
| Breaking Switching Capacity (Icu) | (400V AC: 150 kA), (440V AC: 150 kA) |
| No. of Poles | 3-Pole |
| Protection Class | IP20 |
| Connection | Screw terminals |
| Ambient Temperature | -25 … 55 °C |
| Dimensions | 76 x 45 x 93 mm |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1093927 |
| Weight | 0,29 |
