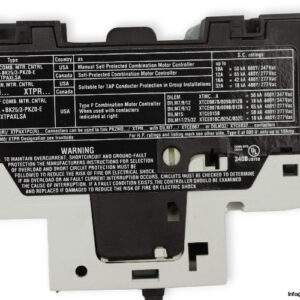

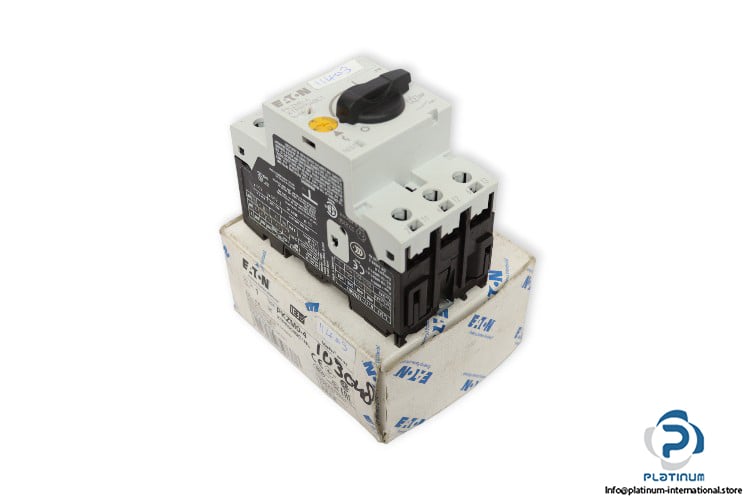

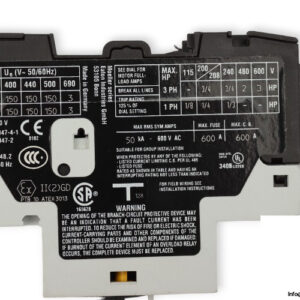

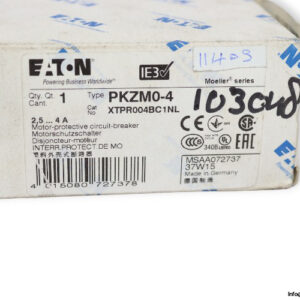

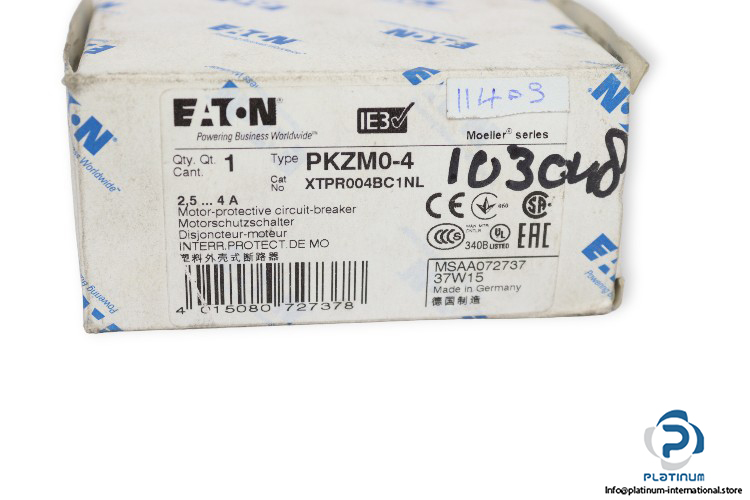

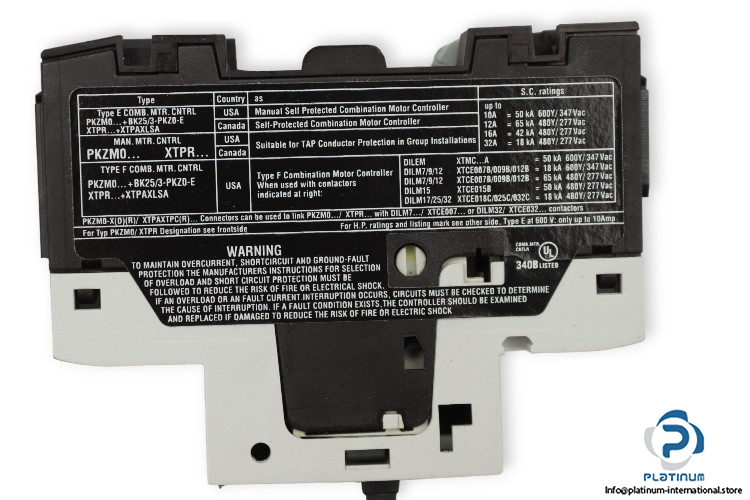

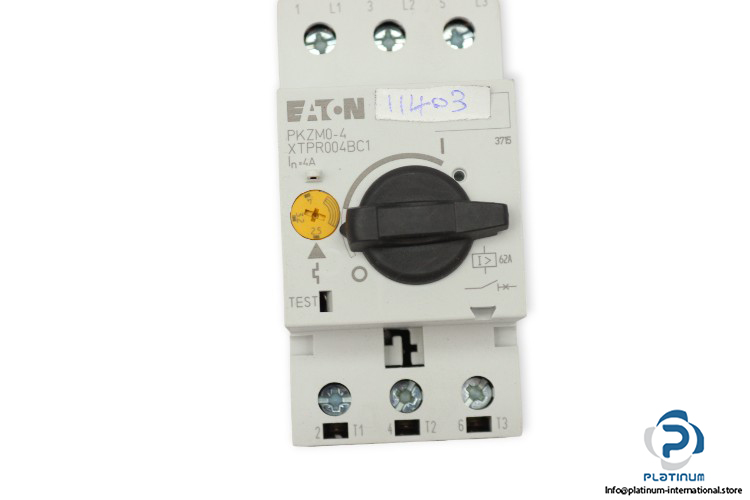

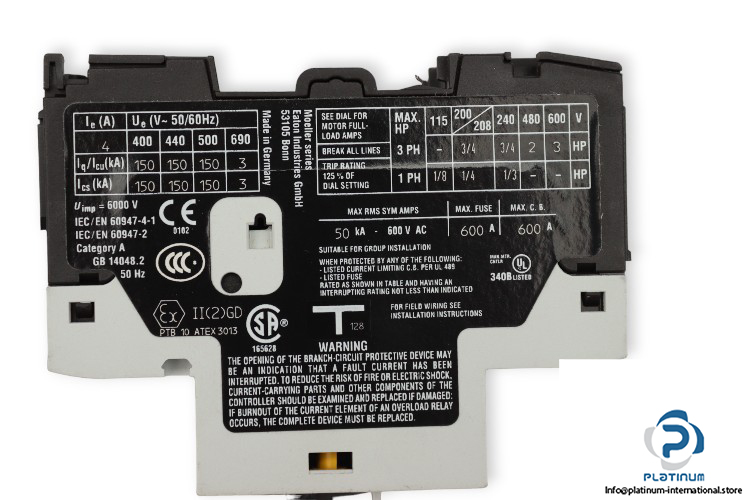

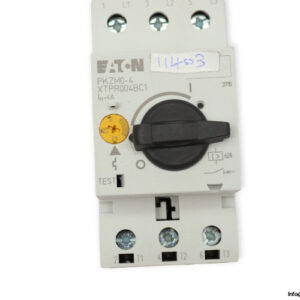

Eaton PKZM0-4 Motor Protective Circuit Breaker

Manufacture: Eaton
Type: Motor Protective Circuit Breaker
Model: PKZM0-4
Part No.: XTPR004BC1NL

Rated Operational Voltage (Ue): 690 V
Rated Operational Current (In): 4 A
Overload release current setting Range: 2.5 … 4 A
Frequency: 50 … 60 Hz
Rated Impulse withstand Voltage (Uimp): 6 kV
Rated Operational Power AC-3:
380/400 V: 1.5 kW
Service Switching Capacity (Ics):
400/440/500 V AC: 150 kA
690 V AC: 3 kA
Breaking Switching Capacity (Icu):
400/440/500 V AC: 150 kA
690 V AC: 3 kA
Power Loss: 5.33 W
No. of Poles: 3-Pole
Standard: IEC/EN 60947-4-1, IEC/EN 60947-2
Protection Class: IP20
Connection: Screw terminals
Ambient Temperature: -25 … 55 °C
Dimensions: 76 x 45 x 93 mm
