Embraco NEK2125GK Compressor
New
In stock1 unitReady to ship
COMPRESSOR
Single-phase refrigeration compressor from Embraco with 1/3+ HP, R-404A compatibility, and compact 6.2 cm³ displacement. Ideal for low-temperature commercial cooling systems.1.3220VcommercialcompressorCoolingEmbracoHPlowNEK2125GKR-404ARefrigerationSingle-PhaseTemperatureUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

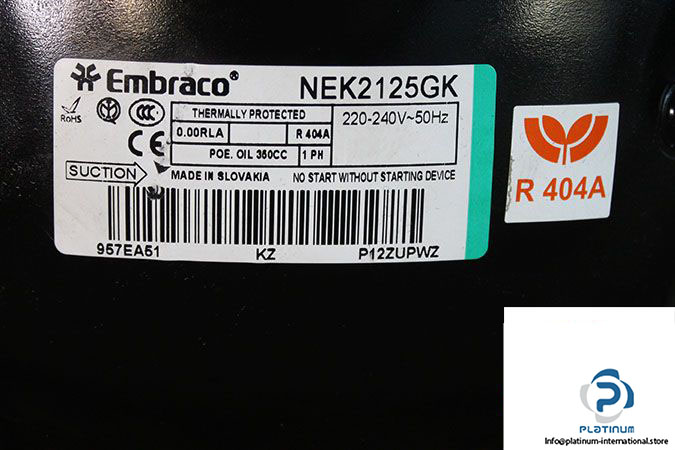

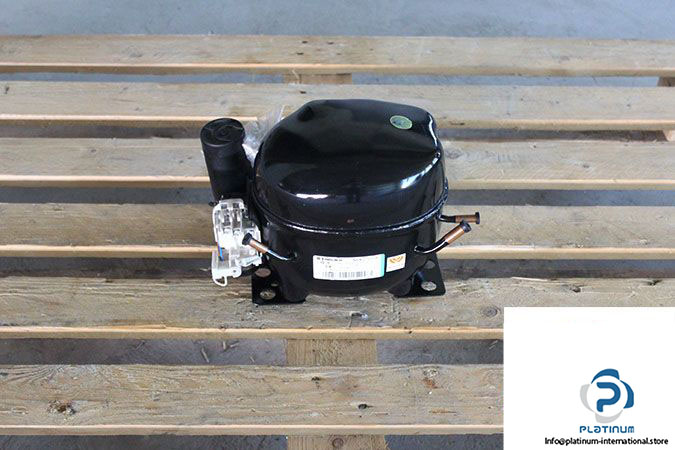

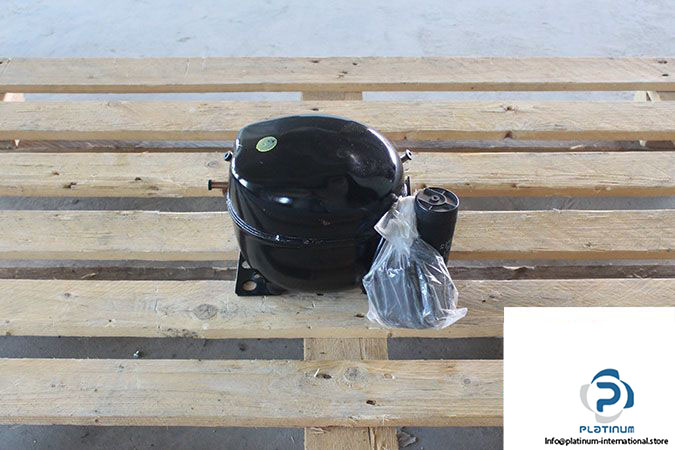

EMBRACO NEK2125GK COMPRESSOR
The Embraco NEK2125GK is a high-efficiency single-phase refrigeration compressor designed for commercial cooling applications. With its compact displacement, strong starting torque, and compatibility with R-404A refrigerant, it offers reliable performance across a wide evaporating temperature range.
Manufacturer: Embraco
Type: Compressor
Model: NEK2125GK
Part No.: P12ZUPWZ
Engineering Nr.: 957EA51
Phase: 1~ Single Phase
| Horsepower [Hp] | 1/3+ |
| Rated Voltage [V] | 220 to 240 |
| Displacement [cm³] | 6.2 |
| Bore [mm] | 20.88 |
| Stroke [mm] | 18.12 |
| Locked Rotor Amperage [A] | 12.4 |
| Start Winding Resistance [„¦] | 27.7 |
| Run Winding Resistance [„¦] | 6 |
| Nitrogen Charge [bar] | 0.2 to 0.3 |
| Max Condensing Pressure Operating [kgf/cm²] | 24.7 |
| Max Condensing Pressure Peak [kgf/cm²] | 27.7 |
| Evaporating Temperature Range [°C] | -40 to 10 |
| Maximum Winding Temperature [°C] | 130 |
| Frequency [Hz] | 50 |
| Refrigerant | R-404A |
| Lubricant Charge [ml] | 350 |
| Lubricant Type/Viscosity | ESTER / ISO22 |
