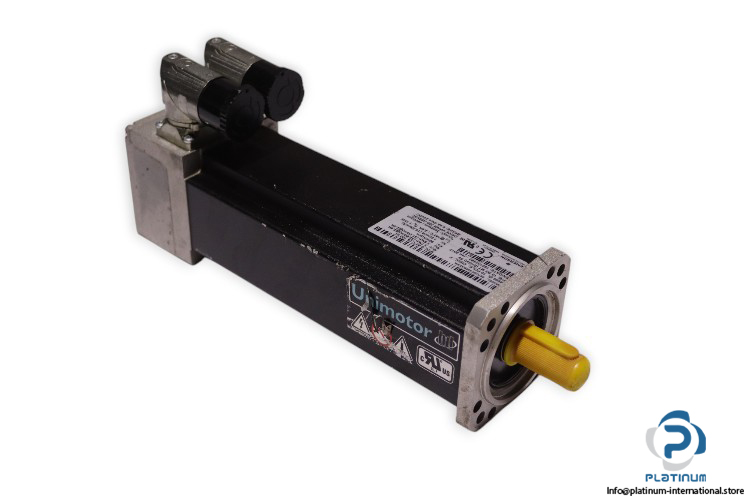

Emerson 067UDC305BAEMA Servo Motor
Manufacturer: EMERSON
Type: Servo Motor

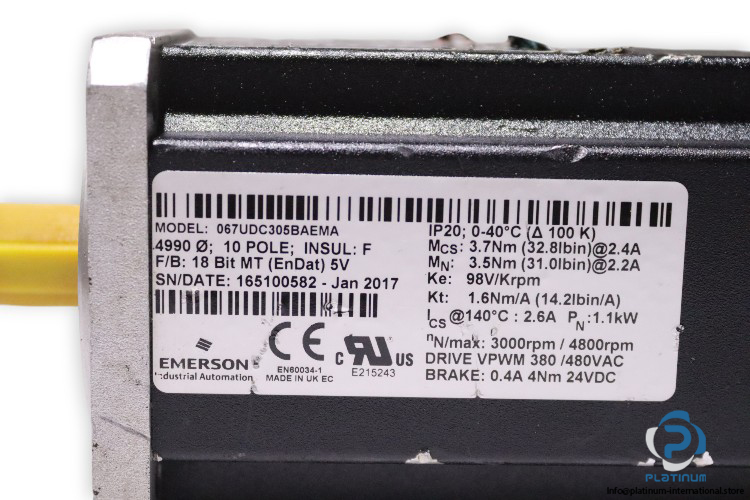

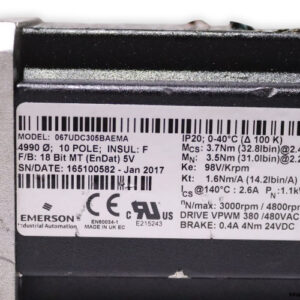

Model: 067UDC305BAEMA
Rated Voltage: 380/480 V
Rated Power: 1.1 kW
Rated Torque: 3.5 Nm
Stall Torque: 3.7 Nm
Rated Current: 2.2 A
Stall Current: 2.4 A
Rated Speed: 3000 rpm
Max. Speed: 4800 rpm
Ke: 98 V/Krpm
Kt: 1.6 Nm/A
Brake voltage: 24 VDC
Brake Current: 0.4 A
Brake Turque: 4 Nm
Protection Class [IP]: 20
Temperature: 0 … 40 ° C
Poles: 10
Insulation Class: F
