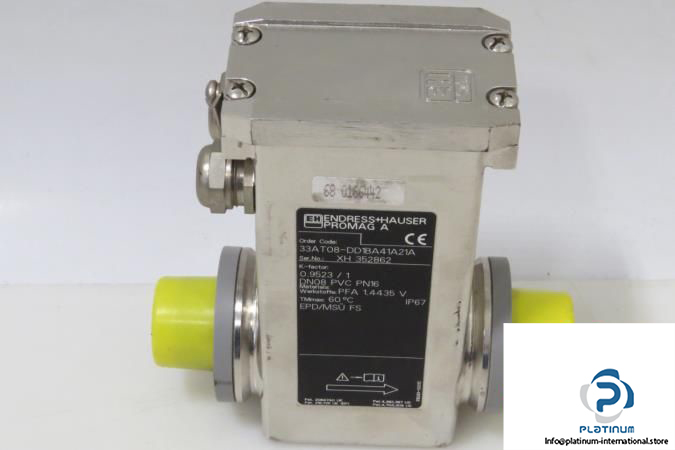

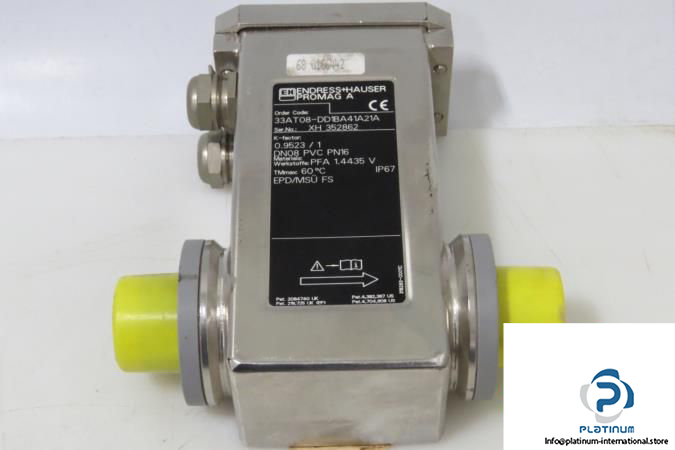

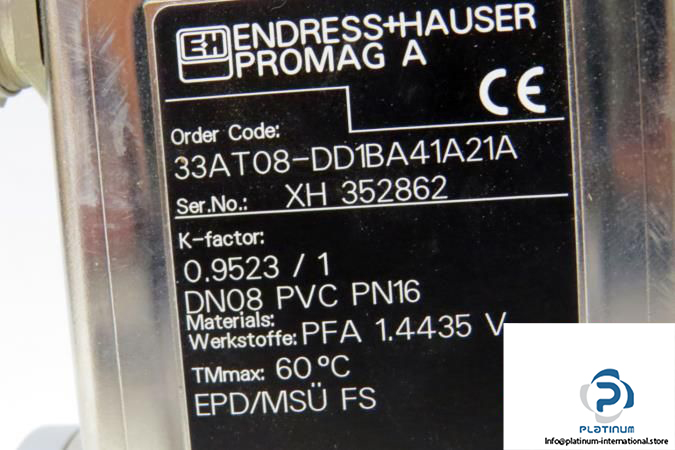

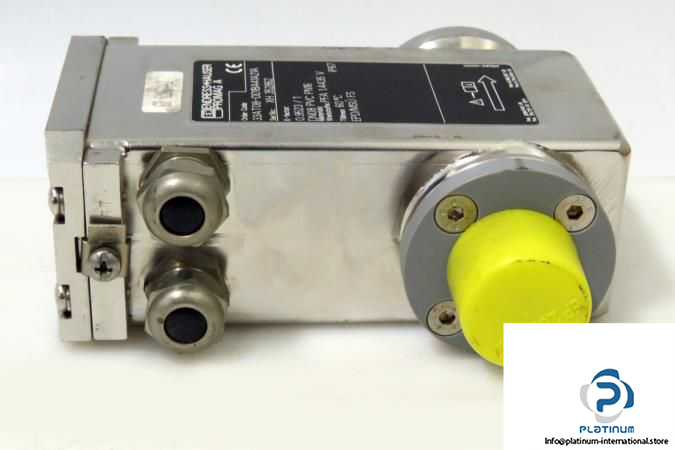

Endress Hauser 33A Promag Measuring Transmitter
Manufacturer : Endress & Hauser
Type : Measuring Transmitter
Model : 33AT08-DD1BA41A21A
Liner Material : Teflon Liner
Size : 5/16 inch (8-mm)
Process Connection/Gasket Material : 1-inch Threads/316LSS, Viton Gasket
Electrodes : 316LSS
Protection Type : NEMA 4X Compact Version
Cable Entries : 0.5-inch NPT
Cable for Remote : None
Calibration : 3-Point Standard Calibration
Approvals : FM approved NI-Class I, Div.2, Groups ABCD; DIP-ClassII, Div.1, Groups EFG
Display Option : Display, with Touch Control
Power Supply : 85-260 VAC, 50/60 Hz
Signal Outputs : Frequency and Current/HART Outputs
Ambient temperature range : -20 to +60
IP degree of protection : IP67
