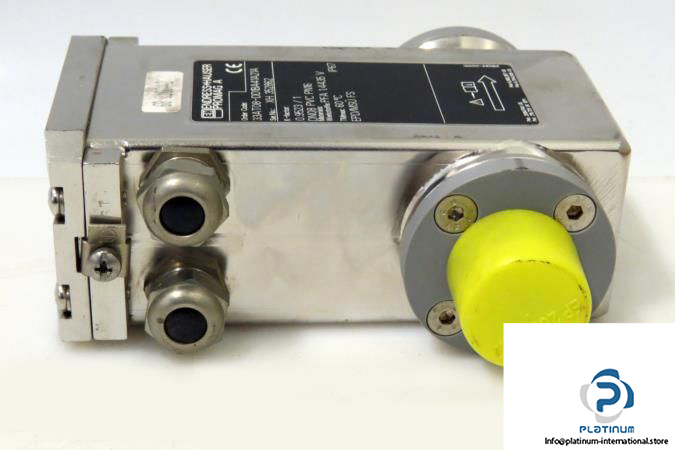

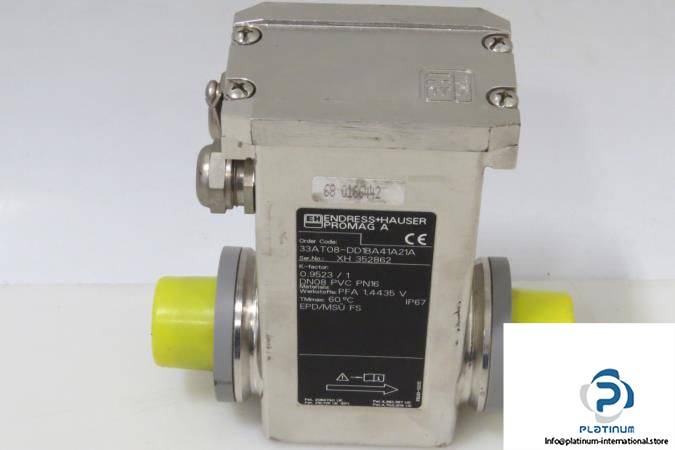

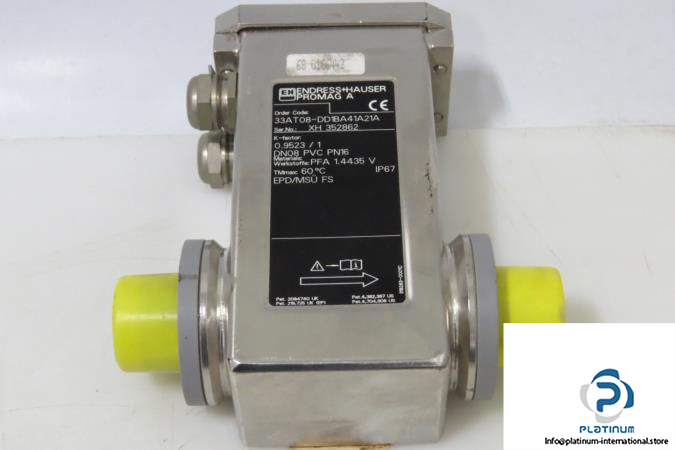

Endress Hauser 33A Promag Measuring Transmitter

Manufacturer : Endress & Hauser

Type :  Measuring Transmitter

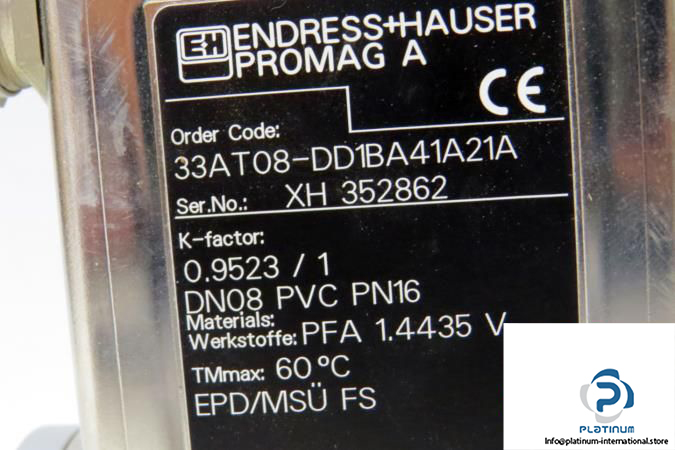

Model : 33AT08-DD1BA41A21A

Liner Material : Teflon Liner

Size : 5/16 inch (8-mm)

Process Connection/Gasket Material : 1-inch Threads/316LSS, Viton Gasket

Electrodes : 316LSS

Protection Type : NEMA 4X Compact Version

Cable Entries : 0.5-inch NPT

Cable for Remote : None

Calibration : 3-Point Standard Calibration

Approvals : FM approved NI-Class I, Div.2, Groups ABCD; DIP-ClassII, Div.1, Groups EFG

Display Option : Display, with Touch Control

Power Supply : 85-260 VAC, 50/60 Hz

Signal Outputs : Frequency and Current/HART Outputs

Ambient temperature range : -20 to +60

IP degree of protection : IP67
