FAG 3303B.TVH Double ROW Angular Contact Ball Bearing
New
In stock6 unitsReady to ship
Double Row Angular Contact Ball Bearing
FAG 3303B.TVH Double Row Angular Contact Ball Bearing with 17 mm bore, 47 mm outer diameter, and 22.2 mm width. Designed for high-speed applications with a 30° contact angle and robust glass-fiber reinforced polyamide cage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

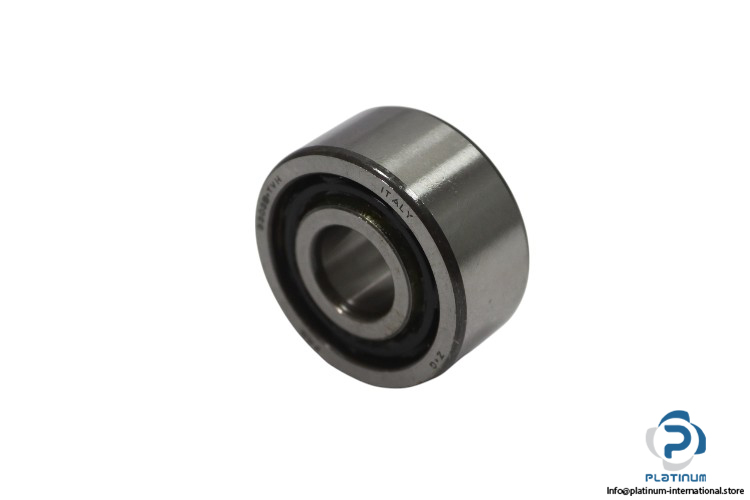

FAG 3303B.TVH Double Row Angular Contact Ball Bearing
The FAG 3303B.TVH Double Row Angular Contact Ball Bearing is designed for high precision and reliability in both radial and axial load applications. With its solid polyamide cage and high-speed capabilities, it is ideal for use in high-performance machinery.
Manufacturer: FAG
Model: 3303B.TVH
Type: Double Row Angular Contact Ball Bearing
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 22.2 mm |
| Contact Angle | 30 ° |
| Dynamic Load Rating (Cr) | 22,500 N |
| Static Load Rating (C0r) | 13,100 N |
| Fatigue Load Limit (Radial) | 910 N |
| Limiting Speed | 16,600 1/min |
| Reference Speed | 12,600 1/min |
| Cage | TVH, Solid cage made of glass-fiber reinforced polyamide PA66 |
