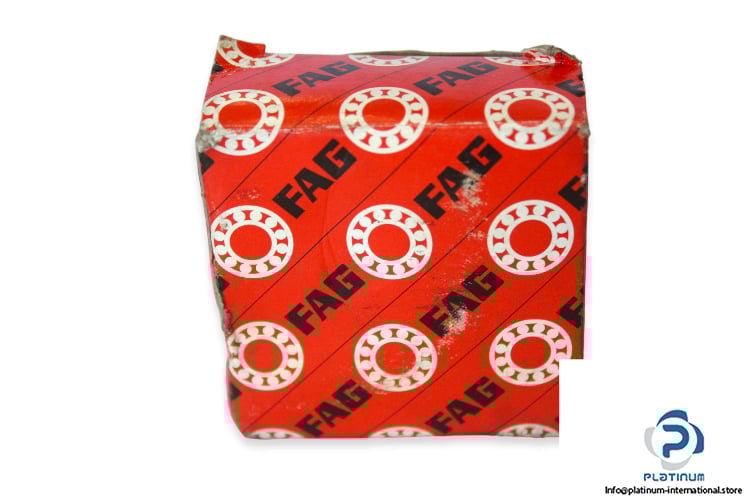

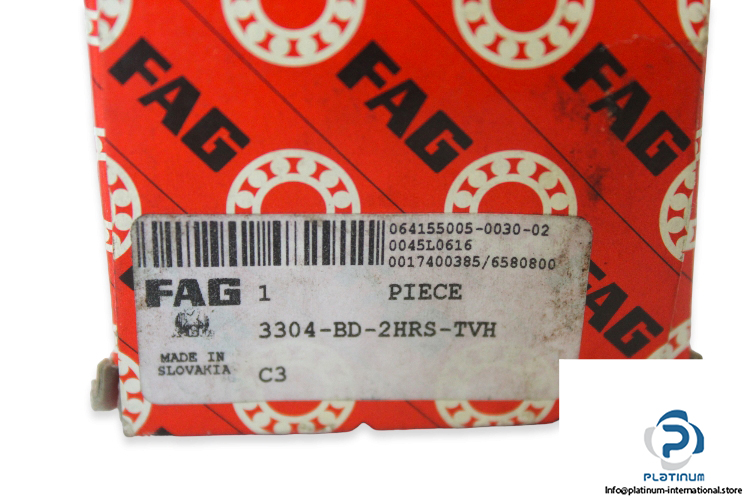

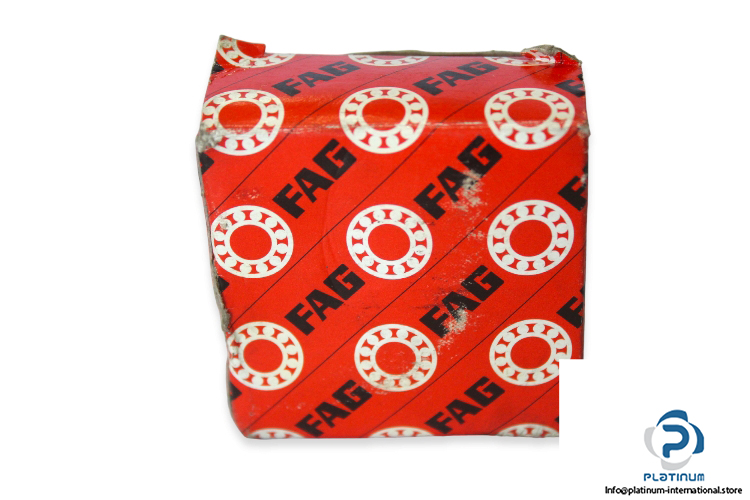

FAG 3304-BD-2HRS-TVH C3 Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3304-BD-2HRS-TVHC3
Replaces: 3304-BD-XL-2HRS-TVH-C3

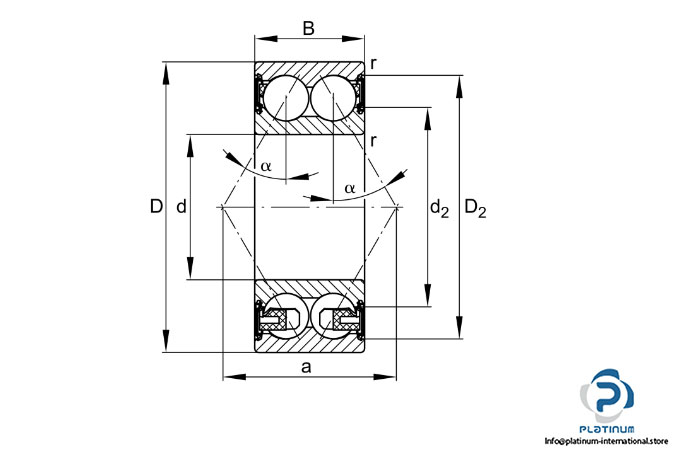

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 52 mm
Width B: 22.2 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 24600 N
Static C0r: 15900 N
Fatigue load rating : 1100 N
Limiting Speed : 11000 rpm
Seal: 2HRS, Contact seal on both sides
Clearance: C3
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Operating temperature: -20 … +100 °C
