FAG 3307B.2RSR.TVH Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Angular Contact Ball Bearing
FAG double-row angular contact ball bearing with rubber seals, 30° contact angle, and polyamide cage, designed for combined radial and axial load applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

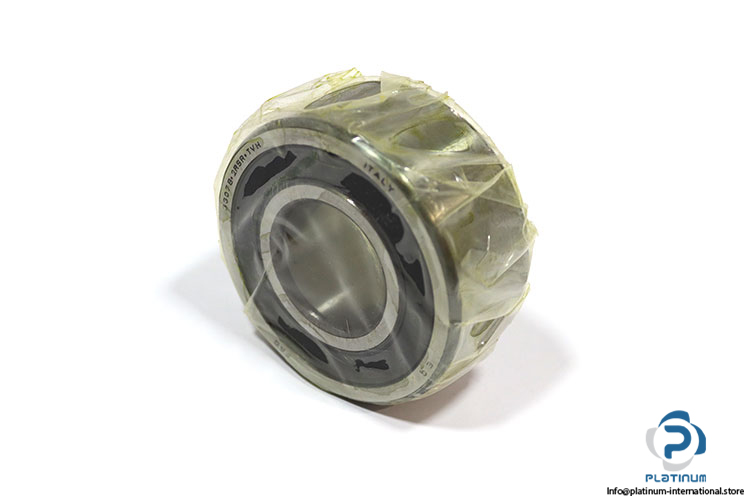

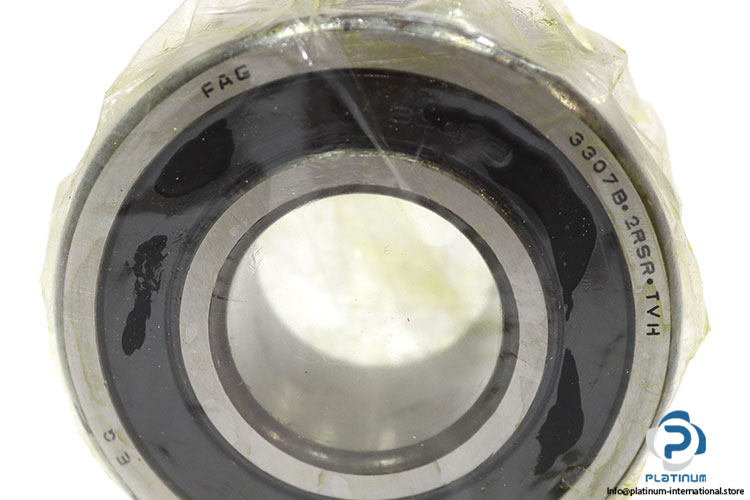

FAG 3307B.2RSR.TVH Angular Contact Ball Bearing
The FAG 3307B.2RSR.TVH is a double-row angular contact ball bearing designed to support combined radial and axial loads while ensuring smooth and reliable operation in industrial applications.
Manufacturer: FAG / Schaeffler
Type: Angular Contact Ball Bearing
Model: 3307B.2RSR.TVH
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 80 mm |
| Width (B) | 34.9 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 55,000 N |
| Static Load Rating (C0r) | 36,500 N |
| Fatigue Load Limit (Cur) | 2,550 N |
| Limiting Speed | 6,800 1/min |
| Sealing | 2RSR, Rubber Seals On Both Sides |
| Cage | TVH, Glass-Fiber Reinforced Polyamide PA66 |
| Design Variant | B, Without Filling Slot |
| Operating Temperature | -20 To +100 °C |
