FAG 3310-BD-TVH Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3310-BD-TVH
Replaces: 3310-BD-XL-TVH

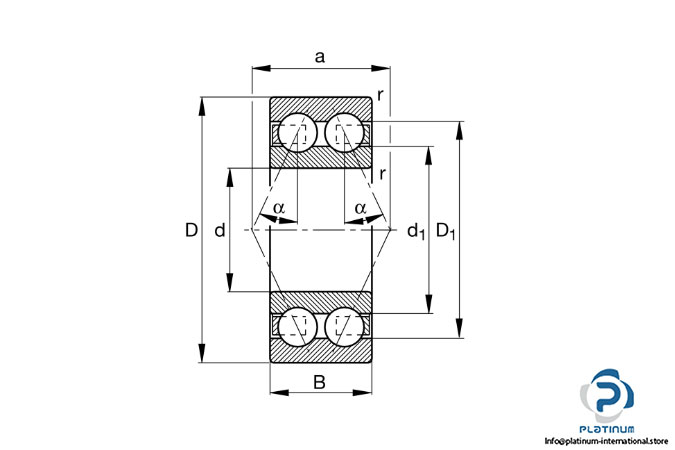

Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 110 mm
Width B: 44.4 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 93000 N
Static C0r: 70000 N
Fatigue load rating : 4850 N
Limiting Speed : 6500 rpm
Reference speed: 6300 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Operating temperature: -30 … +120 °CF
