FAG 51124 P6 Axial Deep Groove Ball Bearing
New
In stock1 unitReady to ship
AXIAL BALL BEARING
High-performance axial deep groove ball bearing from FAG with 120 mm inner diameter, steel cage, and P6 precision, designed to support axial loads with stability and reliability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

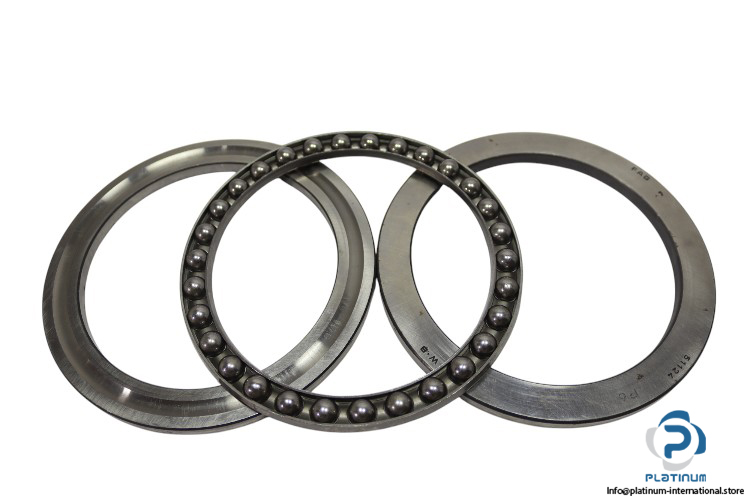

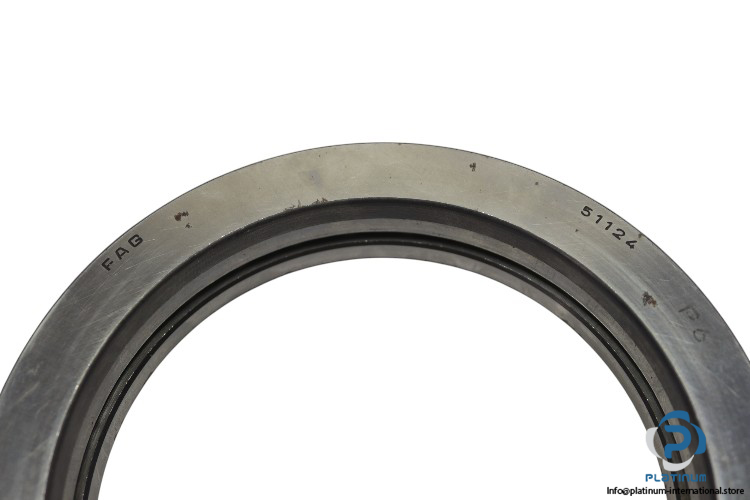

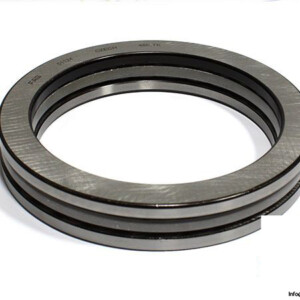

FAG 51124 P6 AXIAL DEEP GROOVE BALL BEARING
This precision-engineered axial deep groove ball bearing by FAG is built to handle high axial loads in one direction. Designed for durability and stability, it operates efficiently under demanding industrial conditions with a steel sheet metal cage and P6 tolerance class.
Manufacturer: FAG
Type: Axial Deep Groove Ball Bearing
Model: 51124 P6
| Inner Diameter Shaft Washer (d) | 120 mm |
| Outer Diameter Housing Washer (D) | 155 mm |
| Height (T) | 25 mm |
| Outer Diameter Shaft Washer (d1) | 155 mm |
| Minimum Chamfer Dimension (rmin) | 1 mm |
| Dynamic Load Rating (Ca) | 89000 N |
| Static Load Rating (C0a) | 310000 N |
| Fatigue Load Rating (Cua) | 12000 N |
| Limiting Speed | 3200 rpm |
| Reference Speed | 2600 rpm |
| Cage | Steel Sheet Metal |
| Operating Temperature | -30 to +150 °C |
| Tolerance | P6 |
