FAG 52213 Axial Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type:  Axial Deep Groove Ball Bearing double direction

Model: 52213

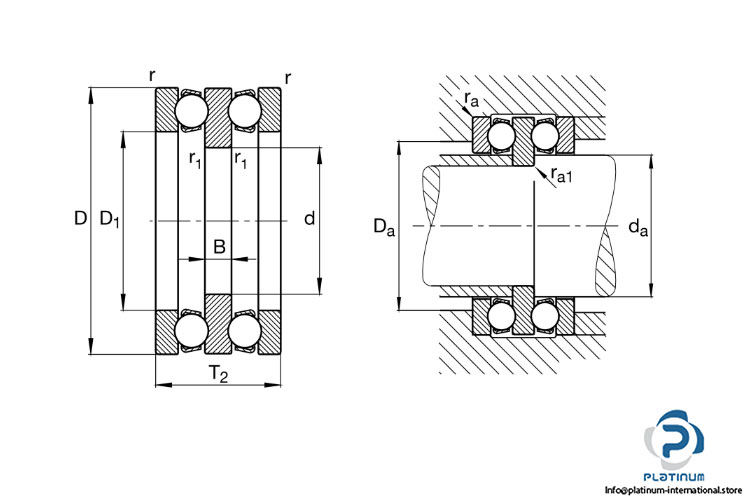

Dimensions:

Inner diameter shaft washer d: 55 mm

Outer diameter housing washer D: 100 mm

Maximum diameter shaft shoulder d_a: 65 mm

Height T₂: 47 mm

Dynamic load rating, axial: 64000 N

Static load rating, axial: 149000 N

Fatigue load limit, axial: 6800 N

Limiting speed: 4100 RPM

Reference speed: 4800 RPM

Operating temperature: -30 … +150 °C

Cage material: Steel
