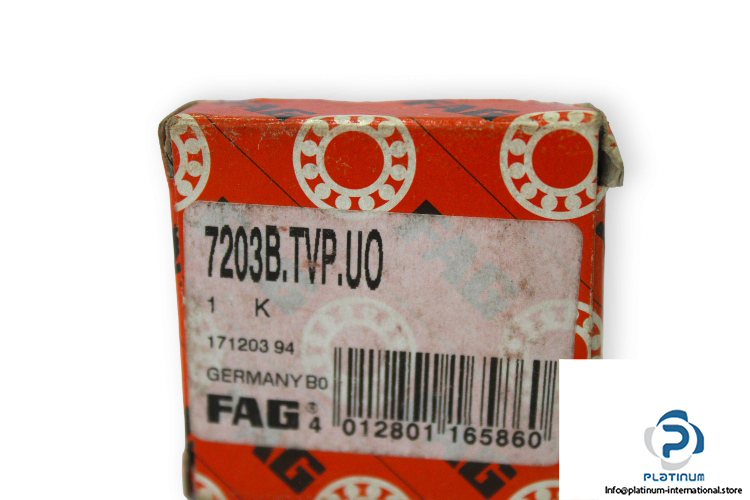

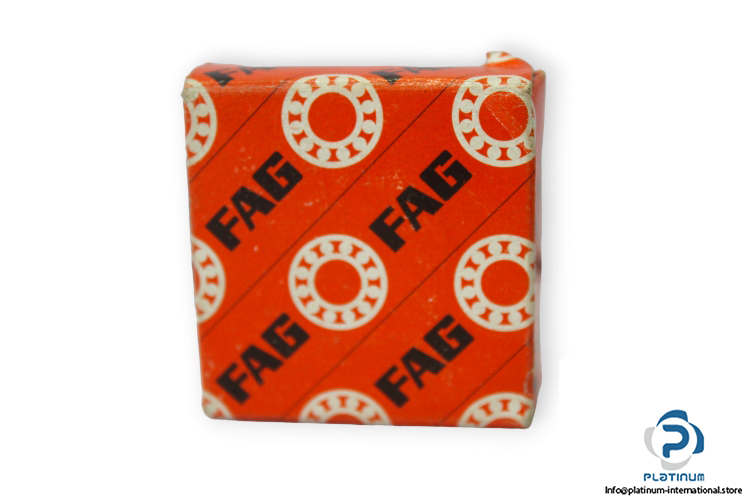

FAG 7203B.TVP.UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7203 B.TVP.UO



Dimensions

Bore Diameter d: 17 mm

Outer diameter D: 40 mm

Width B: 12 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 11200 N

Static C_0r: 5700 N

Fatigue load limit C_ur: 395 N

Limiting speed: 26000 rpm

Reference speed: 17100 rpm

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement
