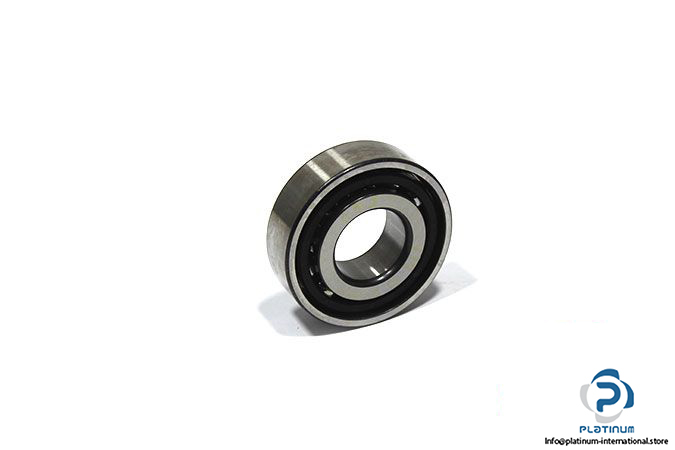

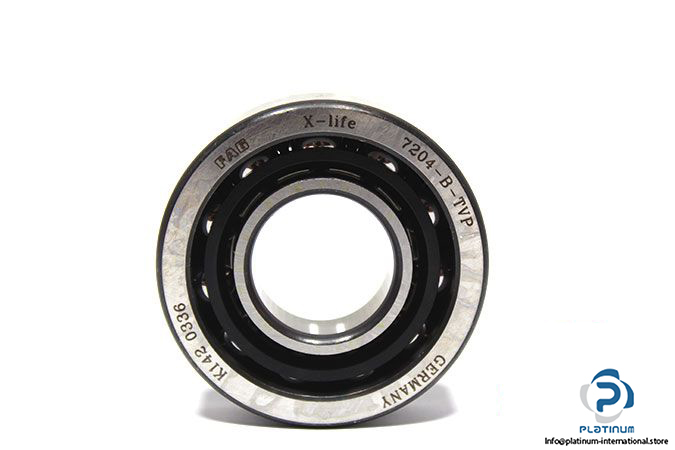

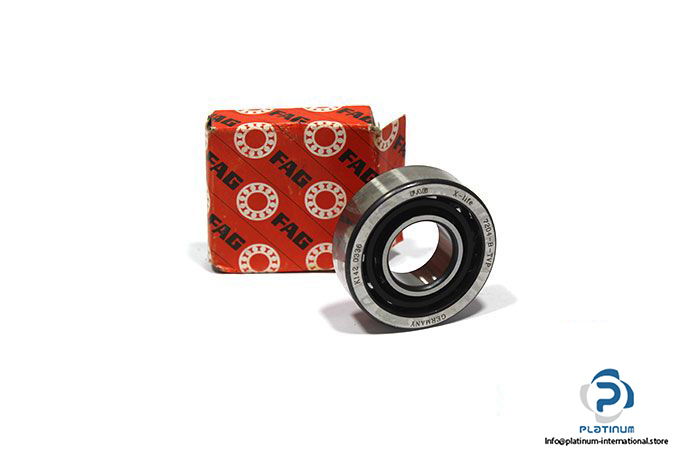

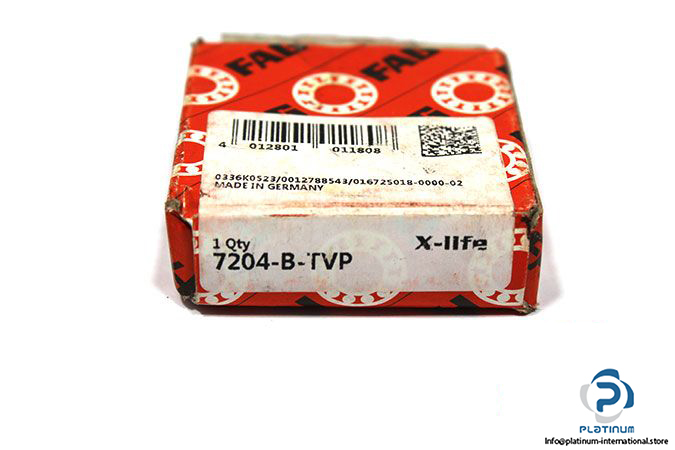

FAG 7204-B-TVP Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular contact Ball Bearing

Part No: 7204-B-TVP

Replaces: 7204-B-TVP, 7204B.TVP

Bore Diameter: 20 mm

Outer diameter: 47 mm

Width: 14 mm

Chamfer r_min: 1 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 14.9 kN

Static C_0r: 7.8 kN

Fatigue load rating: 540 N

Limiting speed: 21600 rpm

Cage: TVP; solid cage made of glass-fiber reinforced polyamid PA66, ball guided

Weight: 0.1 kg
