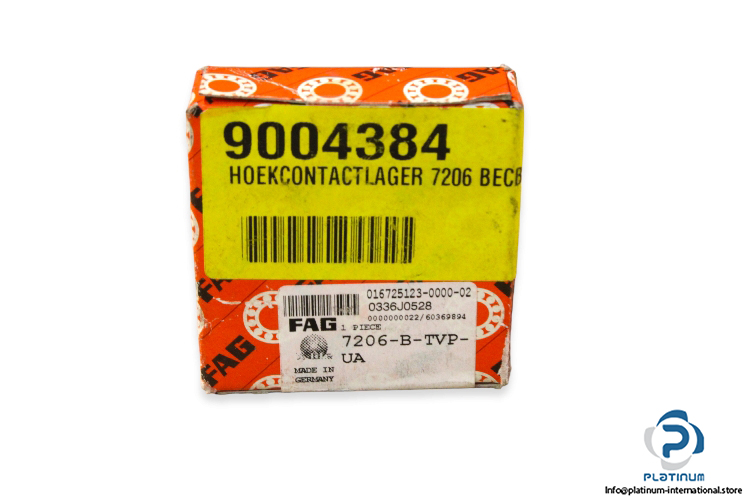

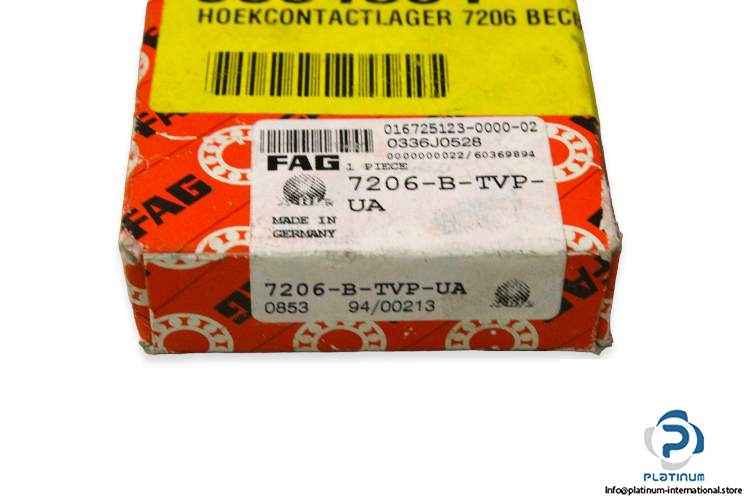

FAG 7206-B-TVP-UA Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing (Spindle Bearing)

Model: 7206 B-TVP-UA

Replaces: 7206B.TVP.UA, 7206-B-XL-TVP-UA

Dimensions:

Bore Diameter d: 30 mm

Outer diameter D: 62 mm

Width: 16 mm

Contact angle: 40 °

Dynamic load rating: 23100 N

Static load rating: 14100 N

Fatigue load limit: 980 N

Limiting speed for grease lubrication: 15800 RPM

Limiting speed for oil lubrication: 11200 RPM

Bearing arrangement: UA; bearing set with small axial internal clearance

Tolerance class: Class6 (P6), better than PN

Cage material: Plastic cage

Operating temperature: -30 … +120 °C
