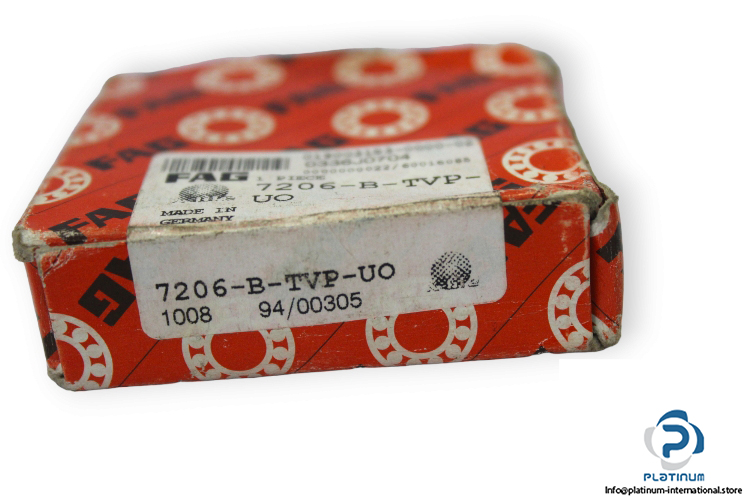

FAG 7206-B-TVP-UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7206 B-TVP-UO

Replaces: 7206-B-XL-TVP-UO, 7206B.TVP.UO



Dimensions

Bore Diameter d: 30 mm

Outer diameter D: 62 mm

Width B: 16 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 23100 N

Static C_0r: 14100 N

Fatigue load limit C_ur: 980 N

Limiting speed: 15800 rpm

Reference speed: 11200 rpm

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement
