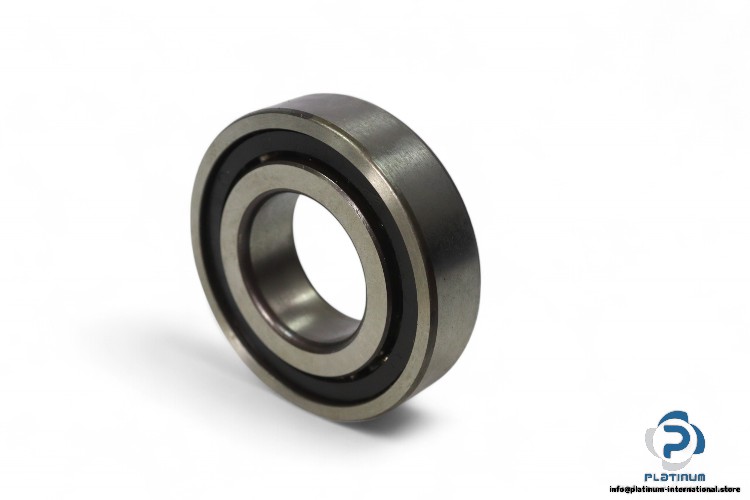

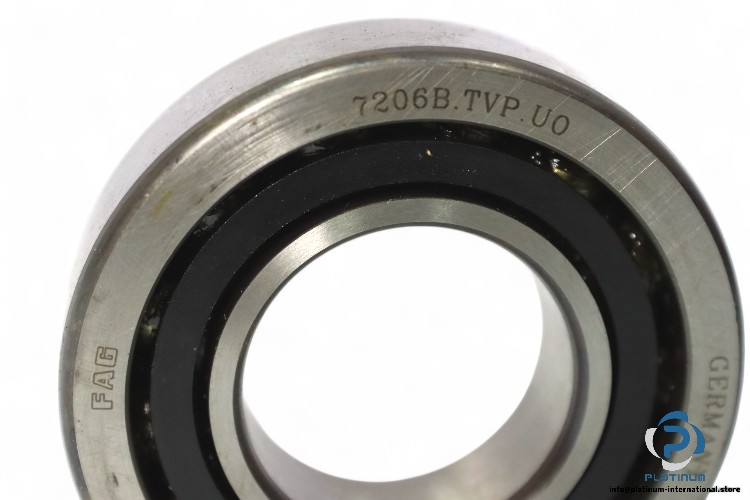

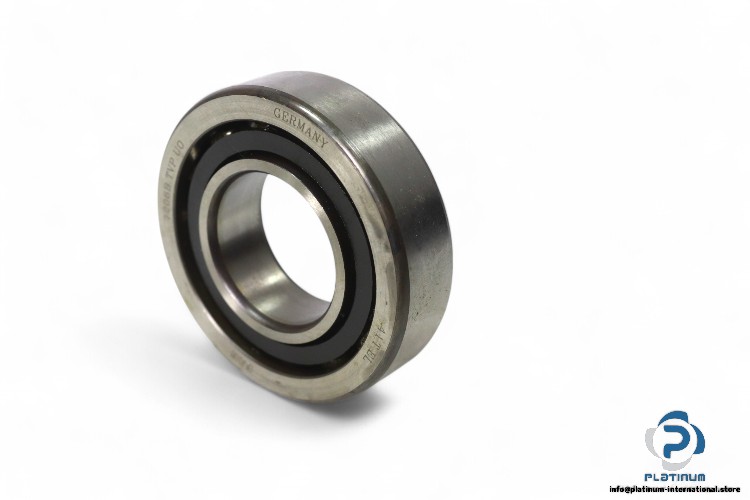

FAG 7206B.TVP.UO Angular Contact Ball Bearing

Manufacturer: FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7206B.TVP.UO

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 16 mm
Contact angle α: 40 °
Basic load ratings:
Dynamic C_r: 23100 N
Static C_0r: 14100 N
Fatigue load limit C_ur: 980 N
Limiting speed: 15800 rpm
Reference speed: 11200 rpm
Design variant: B
Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66
Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement
