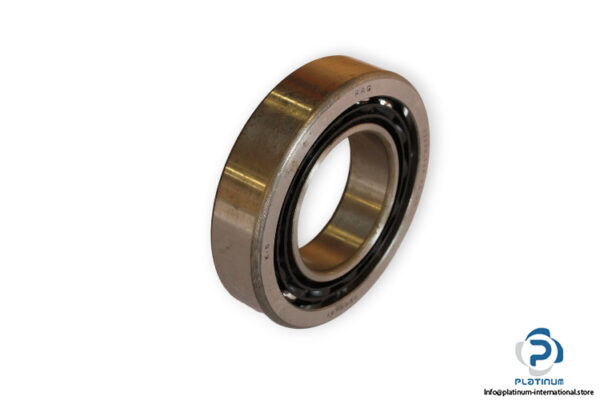

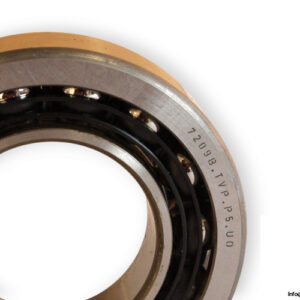

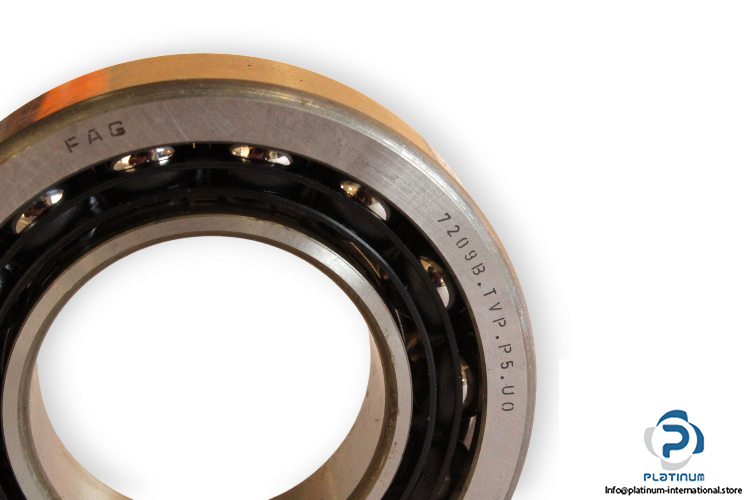

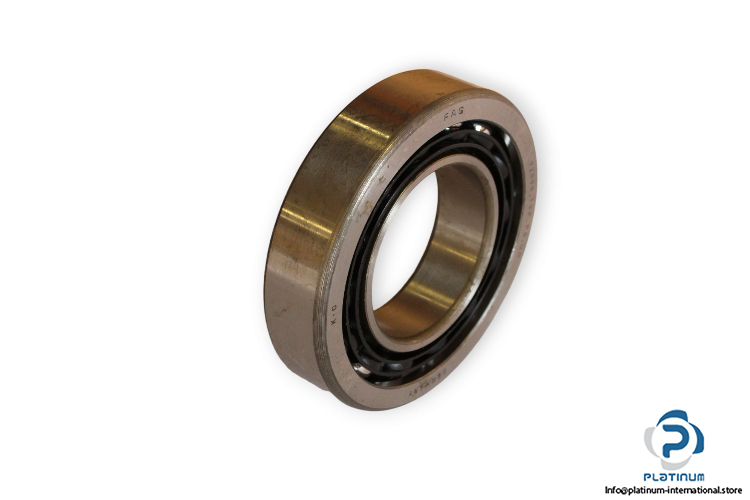

FAG 7209B.TVP.P5.UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7209 B.TVP.P5.UO

Replaces: 7209-B-XL-TVP-P5-UO,  7209-B-TVP-P5-UO

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 85 mm

Width B: 19 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 40000 N

Static C_0r: 27000 N

Fatigue load limit C_ur: 1870 N

Limiting speed: 11000 rpm

Reference speed: 8000 rpm

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class: P5, Class5 (P5), better than P6

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement
