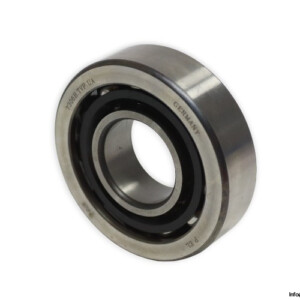

FAG 7306B.TVP.UA Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7306 B.TVP.UA

Replaces: 7306-B-XL-TVP-UA, 7306-B-TVP-UA

Dimensions

Bore Diameter d: 30 mm

Outer diameter D: 72 mm

Width B: 19 mm

Basic load ratings:

Dynamic C_r: 37500 N

Static C_0r: 22100 N

Fatigue load limit C_ur: 1530 N

Contact Angle: 40°

Limiting speed: 13500 rpm

Reference speed: 8600 rpm

Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class: P6, Class6 (P6), better than PN
