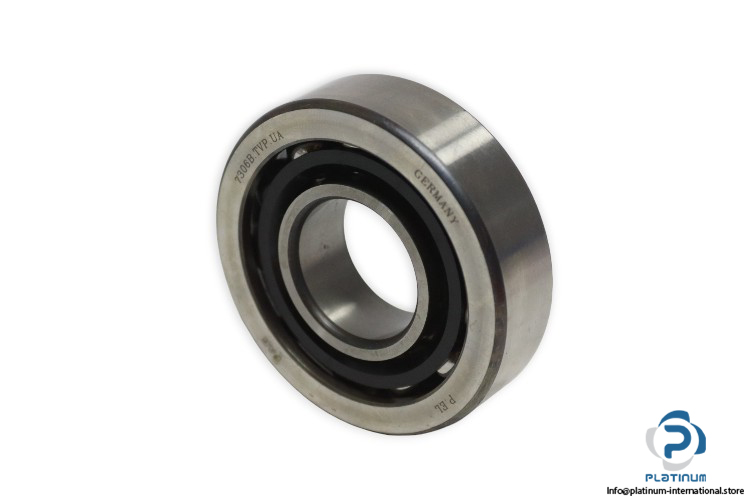

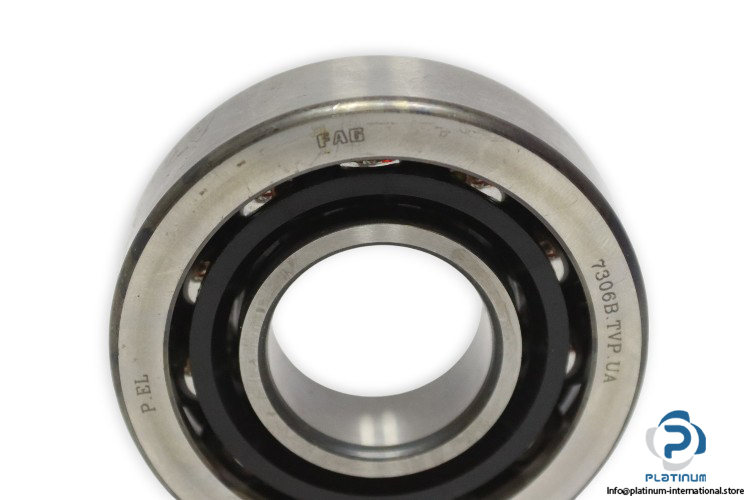

FAG 7306B.TVP.UA Angular Contact Ball Bearing

Manufacturer: FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7306B TVP UA

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 72 mm
Width B: 19 mm
Basic load ratings:
Dynamic C_r: 37500 N
Static C_0r: 22100 N
Fatigue load limit C_ur: 1530 N
Contact Angle: 40°
Limiting speed: 13500 1/min
Reference speed: 8600 1/min
Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66
Tolerance class: P6, Class6 (P6), better than PN
Design variant: B
