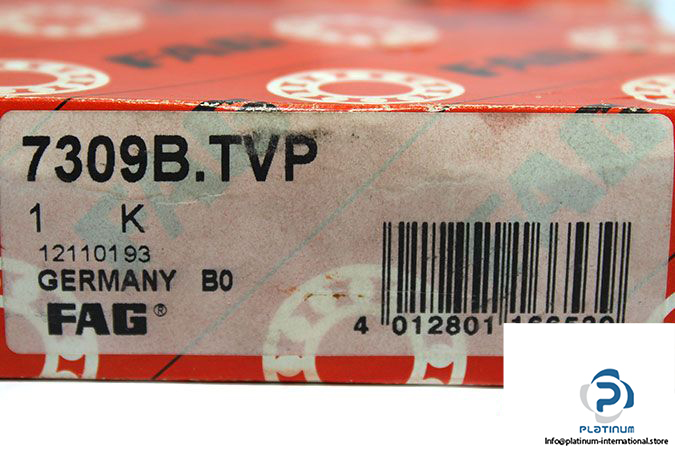

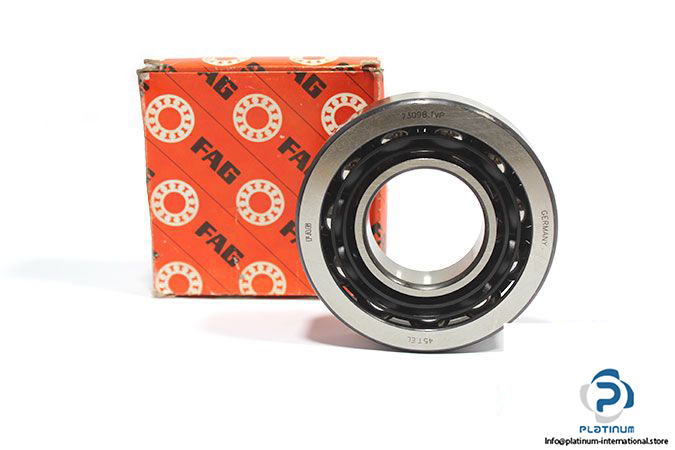

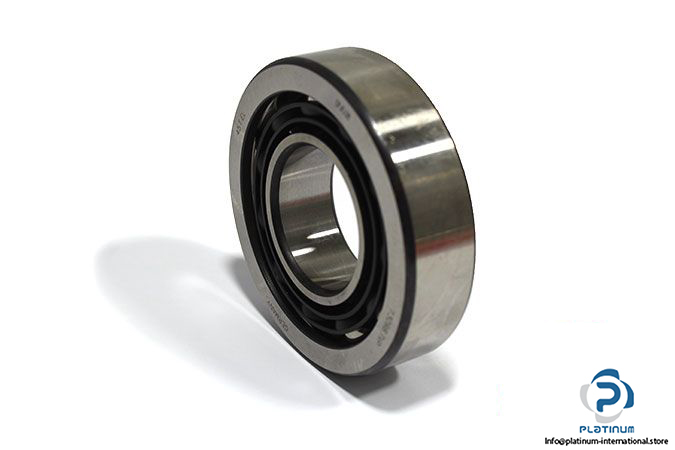

FAG 7309B.TVP Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular Contact Ball Bearing

Model: 7309 B TVP

Replaces: 7309-B-XL-TVP, 7309-B-TVP

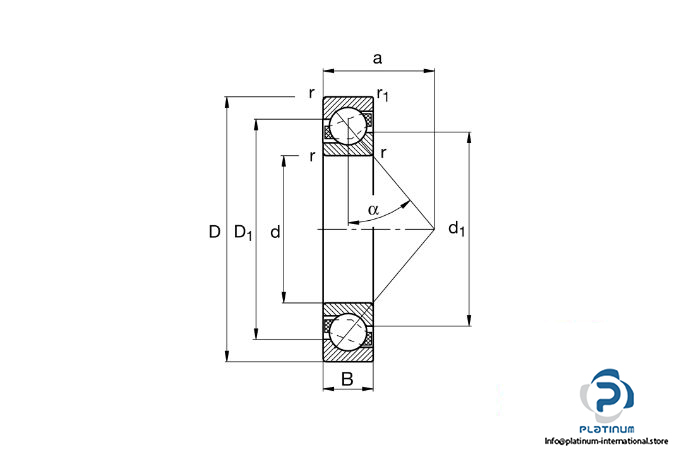

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 100 mm

Width B: 25 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 69000 N

Static C_0r: 43000 N

Fatigue load limit C_ur: 3000 N

Limiting speed: 9300 rpm

Reference speed: 6500 rpm

Cage: solid cage made of glass-fiber reinforced polyamid PA66

Operating Temperature: -30 … +120 °C

Weight: 0.83 kg
