FAG 7310B.TVP Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Angular Contact Ball Bearing
Model: 7310 B TVP
Replaces: 7310-B-XL-TVP

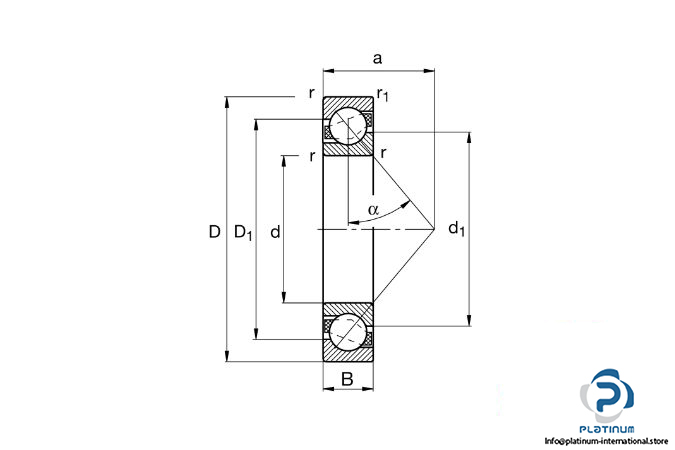

Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 110 mm
Width B: 27 mm
Contact angle α: 40 °
Basic load ratings:
Dynamic Cr: 80000 N
Static C0r: 50000 N
Fatigue load limit Cur: 3500 N
Limiting speed: 8400 rpm
Reference speed: 6100 rpm
Cage: solid cage made of glass-fiber reinforced polyamid PA66
Operating Temperature: -30 … +120 °C
Weight: 1.1 kg
