FAG H2317 Adapter Sleeve

Manufacturer: Schaeffler FAG

Type: Adapter sleeve H

Model: H 2317

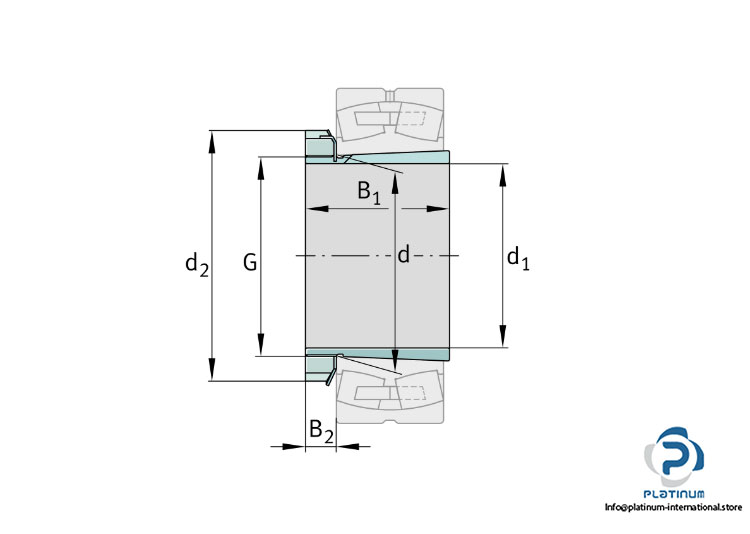

Dimensions:

Bore Diameter d₁: 75 mm

Sleeve length B₁: 82 mm

Bore diameter bearing d: 85 mm

Outer diameter nut d₂: 110 mm

Width nut and lock B₂: 17.75 mm

Thread G: M85x2

Taper: 1:12

Locknut: KM17

Lock washer: MB17
