FAG H3126 Adapter Sleeve

Manufacturer: Schaeffler FAG

Type: Adapter sleeve H

Model: H 3126

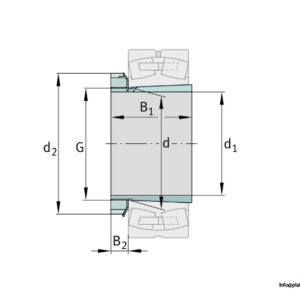

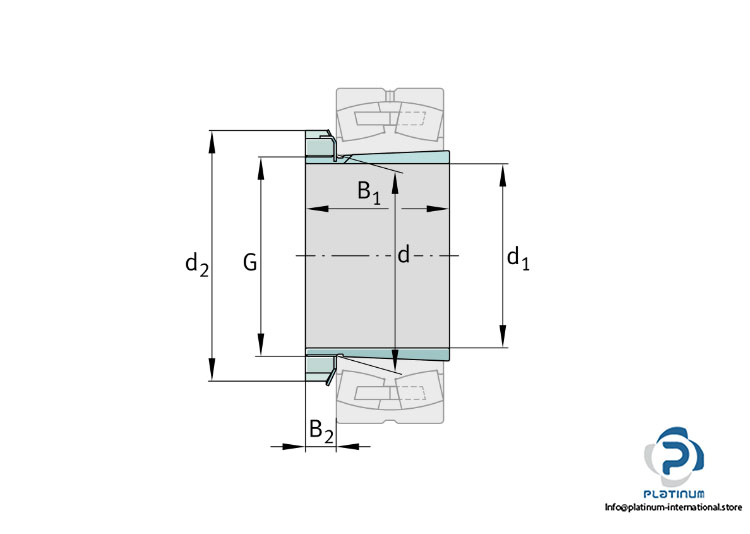

Dimensions:

Bore Diameter d₁: 115 mm

Sleeve length B₁: 92 mm

Bore diameter bearing d: 130 mm

Outer diameter nut d₂: 165 mm

Width nut and lock B₂: 23 mm

Thread G: M130x2

Taper: 1:12

Locknut: KM26

Lock washer: MB26
