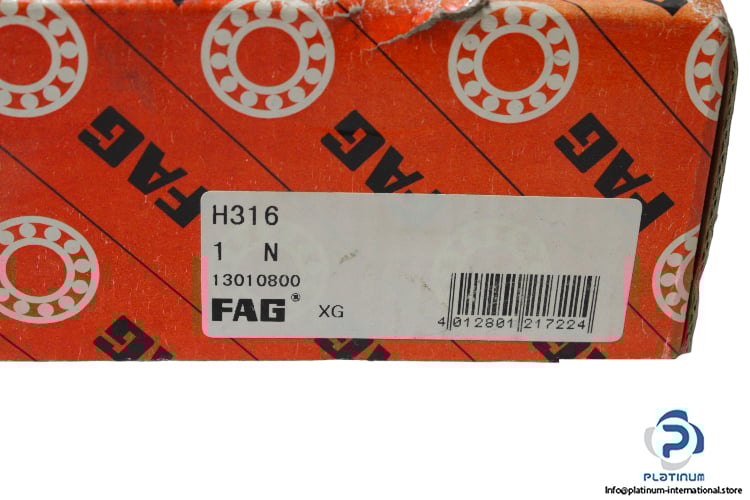

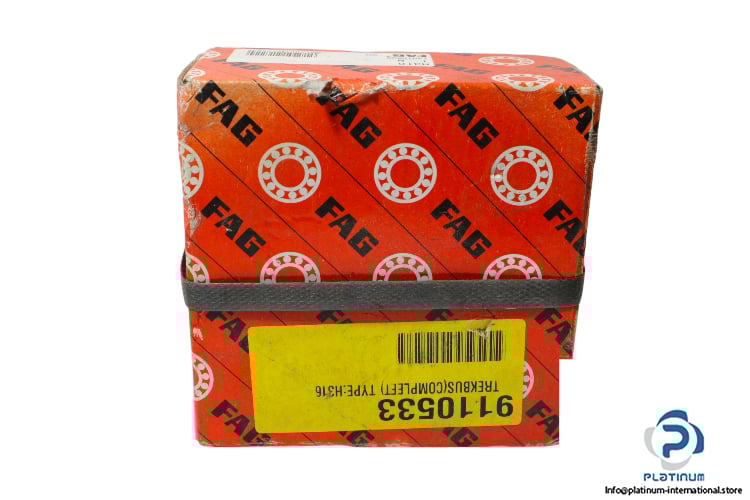

FAG H316 Adapter Sleeve
Manufacturer: Schaeffler FAG
Type: Adapter sleeve H
Model: H 316

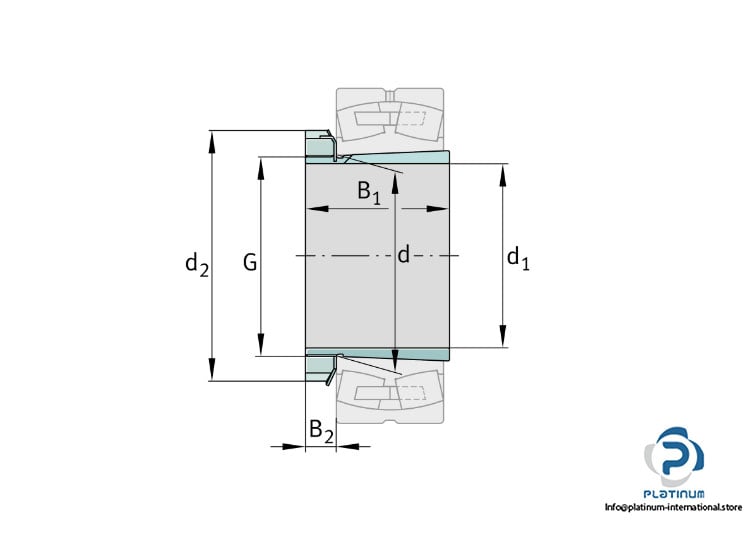

Dimensions:
Bore Diameter d1: 70 mm
Sleeve length B1: 59 mm
Bore diameter bearing d: 80 mm
Outer diameter nut d2: 105 mm
Width nut and lock B2: 16.75 mm
Thread G: M80x2
Taper: 1:12
Locknut: KM16
Lock washer: MB16
