FAG NJ309E.TVP2 Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schaeffler FAG
Type: Cylindrical Roller Bearing
Model: NJ 309 E TVP2
Replaces: NJ309-E-XL-TVP2

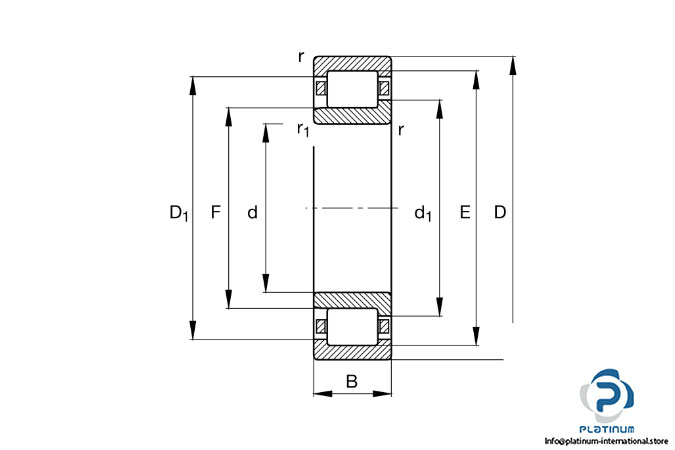

Dimensions:
Bore Diameter d: 45 mm
Outer diameter D: 100 mm
Width B: 25 mm
Basic load ratings, radial:
Dynamic Cr: 116000 N
Static C0r: 99000 N
Fatigue load rating, radial: 17500 N
Limiting speed: 8500 rpm
Reference speed: 6400 rpm
Cage: TVP2, Solid Window Cage made from PA66
Operating temperature: -30 … +120 °C
