FAG NN3040 Ask.m.sp Cylindrical Roller Bearing
In stock1 unitReady to ship
Cylindrical Roller Bearing
The FAG NN3040 ASK.M.SP is a precision cylindrical roller bearing with 200 mm bore, tapered 1:12, brass cage, and SP tolerance. Supports high loads and speeds up to 3,000 RPM with oil lubrication.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

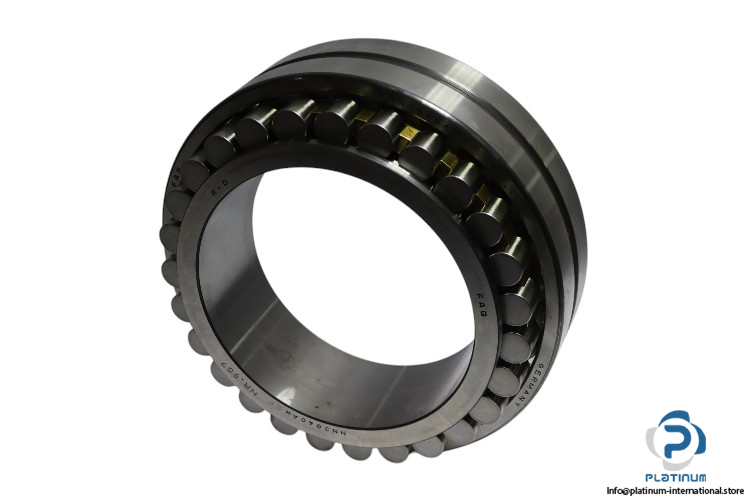

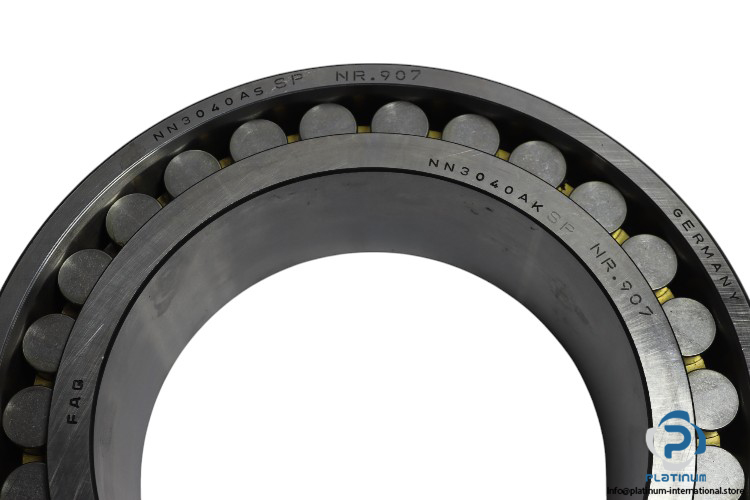

FAG NN3040 ASK.M.SP Cylindrical Roller Bearing
The FAG NN3040 ASK.M.SP is a high-precision cylindrical roller bearing designed for demanding applications requiring exceptional load capacity, tight tolerances, and high-speed performance. With a brass cage and tapered bore (1:12), this bearing ensures stability, reduced vibration, and longevity in high-load environments.
Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NN3040 ASK.M.SP
| Bore Diameter (d) | 200 mm |
| Outer Diameter (D) | 310 mm |
| Width (B) | 82 mm |
| Dynamic Load Rating (Cr) | 660,000 N |
| Static Load Rating (C0r) | 1,190,000 N |
| Fatigue Load Rating | 142,000 N |
| Limiting Speed (Grease Lubrication) | 2,550 1/min |
| Limiting Speed (Oil Lubrication) | 3,000 1/min |
| Cage Material | Brass Cage |
| Bore Type | Tapered, taper 1:12 |
| Tolerance Class | SP |
