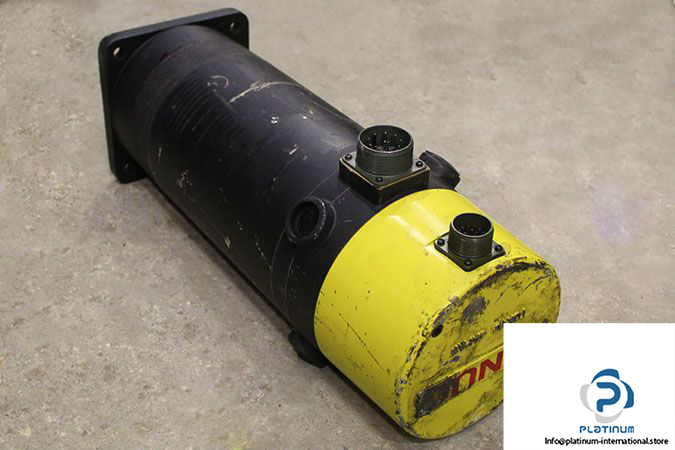

Fanuc A06B-0652-B212 DC Servo Motor
Manufacturer: Fanuc
Type: Dc Servo Motor
Model: A06B0652B212
Rated Voltage: 213 VDC
Rated Current: 18 A
Rated Torque: 23 Nm
Rated Power: 1.8 kW
Rated Speed: 1500 rpm
Ambient Temperature: 40 °C
Rotation Measurement Technology: Pulse Coder
Length Product: 510 mm

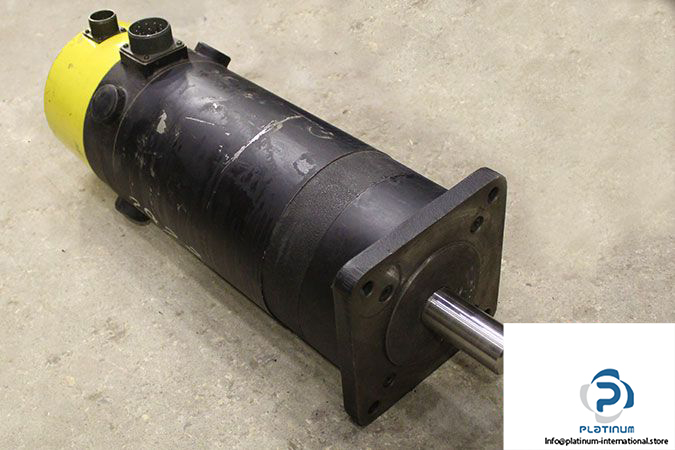

Shaft Diameter: 35 mm

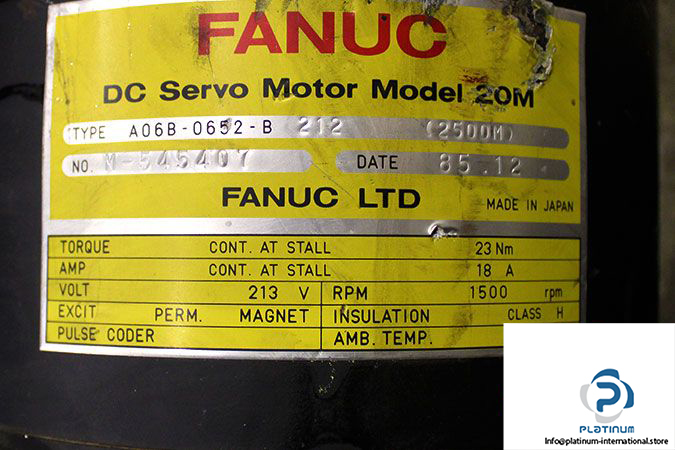

Model No.: 20M
Insulation Class: H
Weight: 49.5 kg
