Festo 173000 Single Solenoid Valve
New
In stock1 unitReady to ship
110,00$
SINGLE SOLENOID VALVE
FESTO MEBH-3/2-1/8-P-B single solenoid valve with 3/2 monostable function and 24V DC coil for pneumatic control systems up to 600 l/min.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

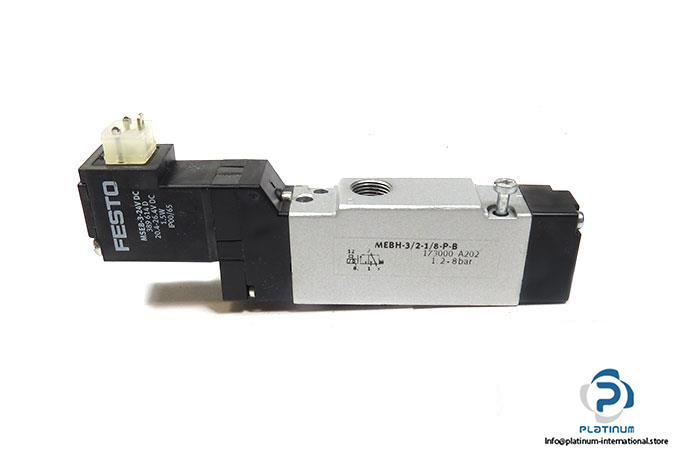

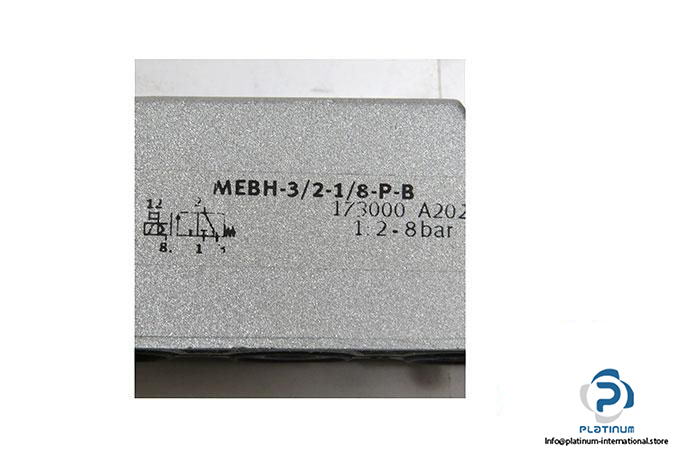

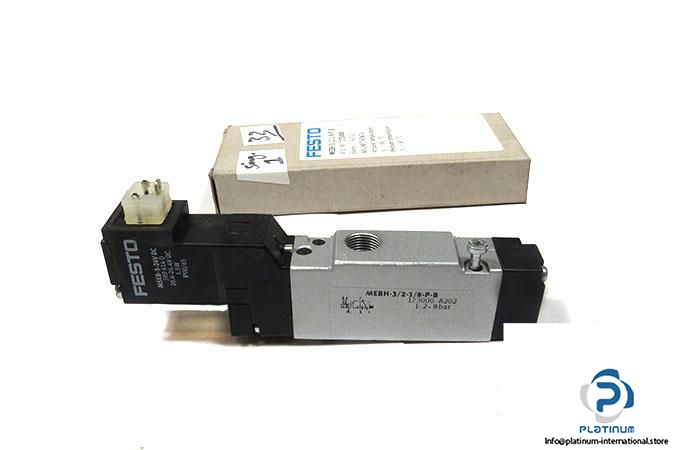

FESTO MEBH-3/2-1/8-P-B SINGLE SOLENOID VALVE WITH COIL
The FESTO MEBH-3/2-1/8-P-B is a high-performance single solenoid valve designed for efficient control of pneumatic systems. Its 3/2 monostable function and piston gate design ensure reliable operation in automated air applications. The included FESTO MSEB-3-24V DC solenoid coil provides precise actuation and energy efficiency.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MEBH-3/2-1/8-P-B
Part No.: 173000
| Fluid | Air |
| Design | Piston gate valve |
| Function | 3/2, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 8 bar |
| Nominal Flow Rate | 600 l/min |
| Pneumatic Connection | Sub-base / G1/8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO MSEB-3-24V DC SOLENOID COIL |
| Part No. | 389614 D |
| Supply Voltage | 24.6 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
