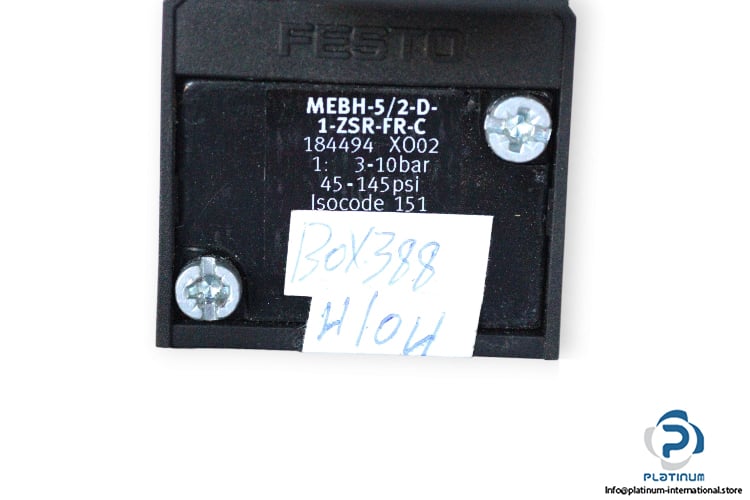

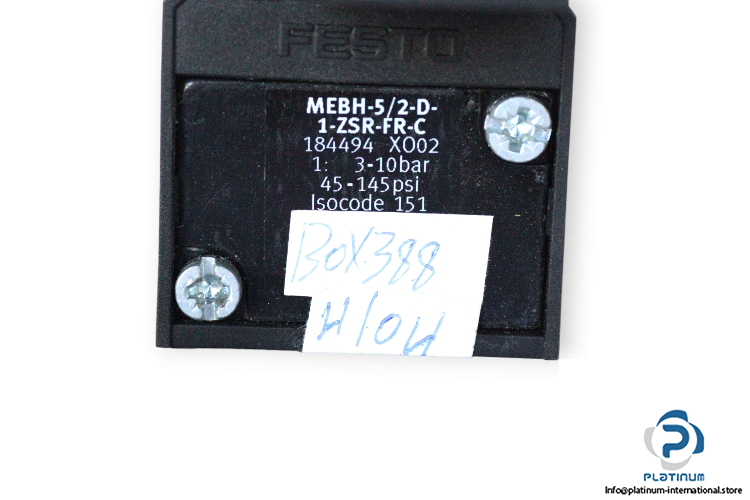

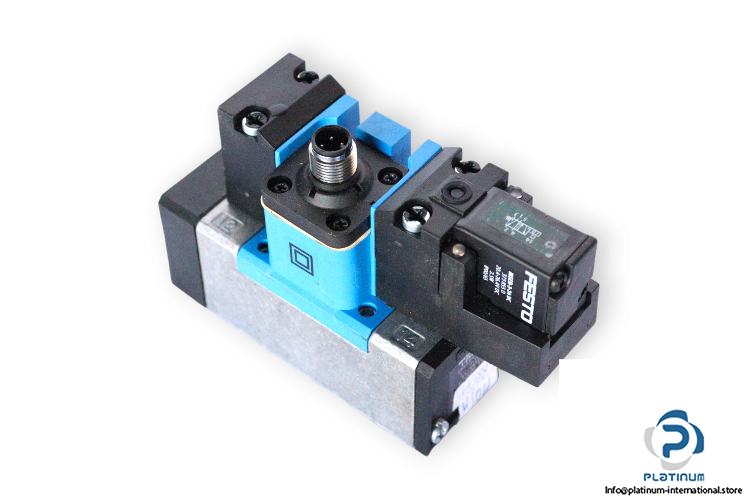

Festo 184494 Single Solenoid Valve

FESTO MEBH-5/2-D-1-ZSR-FR-C SINGLE SOLENOID VALVE WITH COIL

The FESTO MEBH-5/2-D-1-ZSR-FR-C is a high-performance single solenoid valve designed for efficient and precise pneumatic control. Featuring a piston slide design and 5/2 monostable functionality, it operates reliably under a wide range of pressures and temperatures. The included MSEB-3-24V DC solenoid coil ensures stable electrical actuation for critical applications.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MEBH-5/2-D-1-ZSR-FR-C
Part No.: 184494

Valve Technical Information

• Fluid: Air
• Design: Piston Slide
• Function: 5/2 Monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1200 l/min
• Pneumatic Connection: Connection Plate Size 1
• Material: Die-cast Aluminium
• Ambient Temperature: -5 / 50 °C

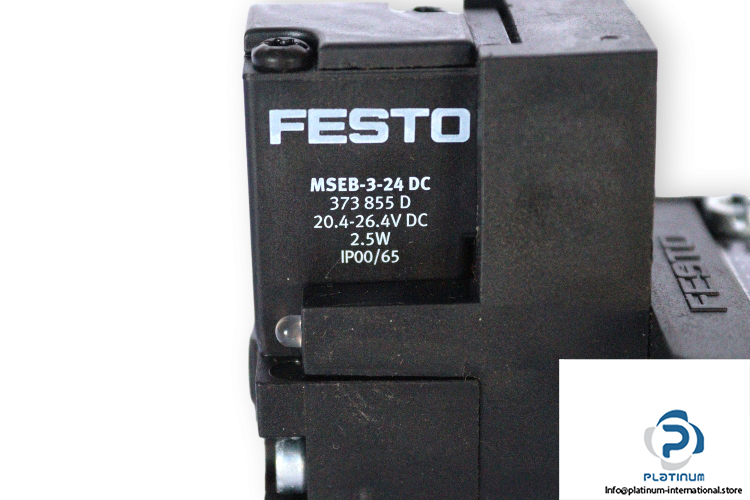

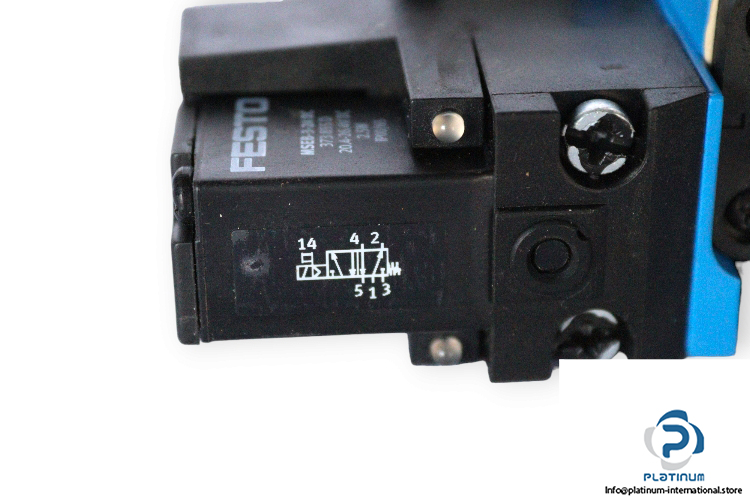

Attachment: FESTO 373855 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 373855

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
