Festo 184494 Single Solenoid Valve
Used
In stock1 unitReady to ship
SINGLE SOLENOID VALVE
FESTO MEBH-5/2-D-1-ZSR-FR-C valve with MSEB-3-24V DC coil offers 5/2 monostable function, 1200 l/min flow rate, and a rugged design for pneumatic systems.5/2ActuatedAircoildcElectricallyFestoflowHighIndustrialMEBH-5/2-D-1-ZSR-FR-CMonostableMSEB-3-24VPneumaticsolenoidValve
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

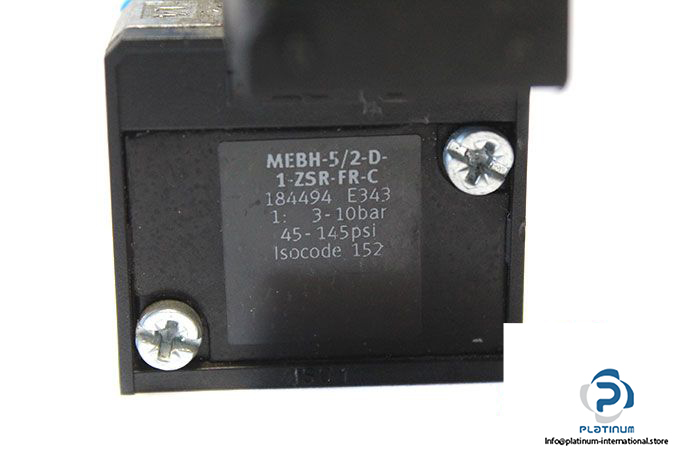

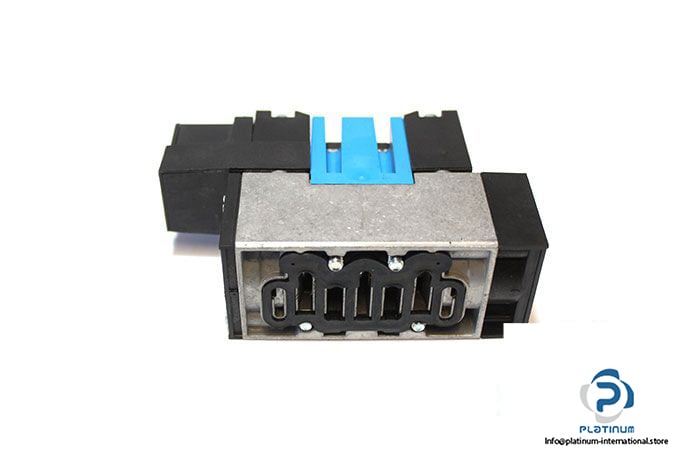

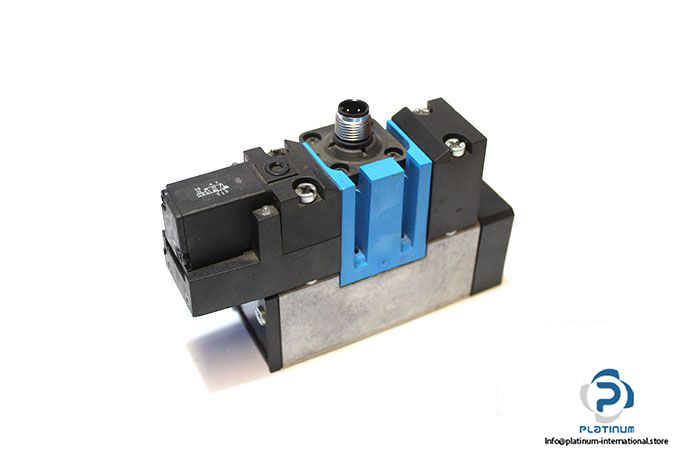

FESTO MEBH-5/2-D-1-ZSR-FR-C SINGLE SOLENOID VALVE WITH MSEB-3-24V DC COIL
The FESTO MEBH-5/2-D-1-ZSR-FR-C is a high-performance single solenoid valve engineered for industrial pneumatic applications. It features a robust piston slide design and delivers reliable 5/2 monostable functionality. Combined with the FESTO MSEB-3-24V DC solenoid coil, this system provides consistent air control and precise operation under a wide range of temperatures and pressures.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MEBH-5/2-D-1-ZSR-FR-C
Part No.: 184494
Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/2 monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 10 bar |
| Nominal Flow Rate | 1200 l/min |
| Pneumatic Connection | Connection plate size 1 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

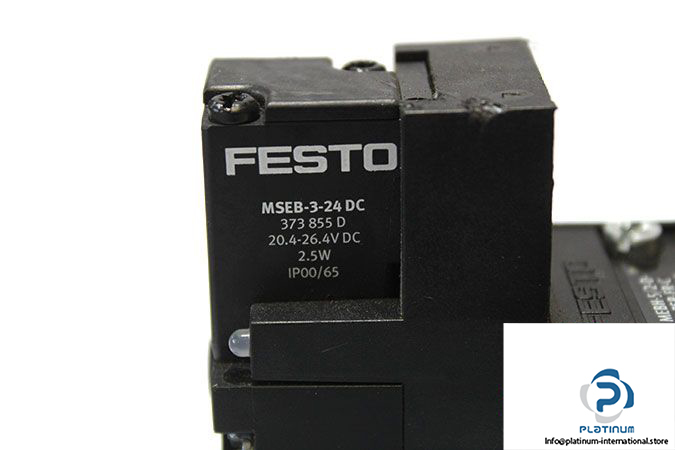

| Attachment | FESTO MSEB-3-24V DC SOLENOID COIL |
| Part No. | 373855 D |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
