Festo 534550 AIR Solenoid Valve
Used
In stock1 unitReady to ship
Air Solenoid Valve
Festo VSVA-B-P53E-ZH-A1-1R5L air solenoid valve with 5/3 exhausted function, 24 V DC operation, pilot-controlled design, and high flow capacity for industrial pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

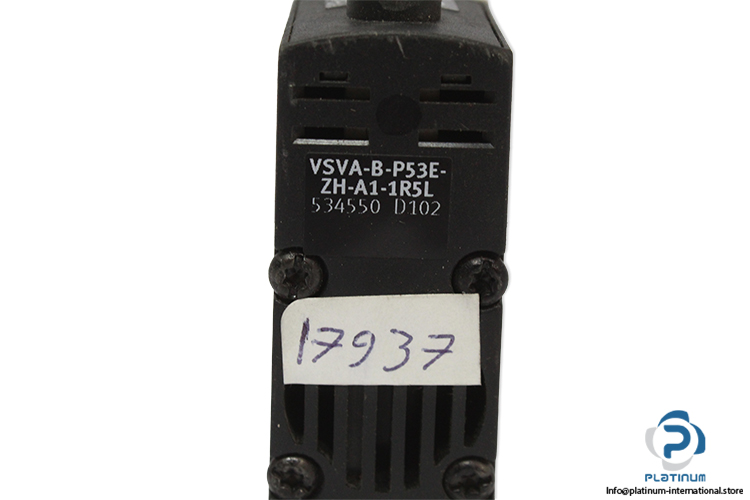

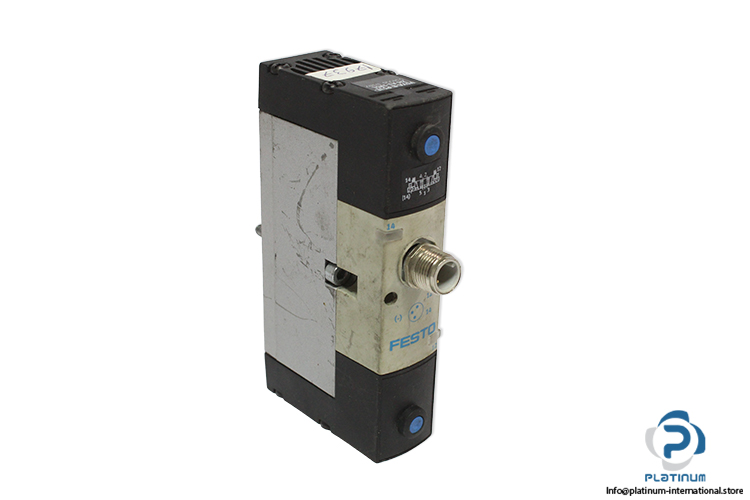

Festo VSVA-B-P53E-ZH-A1-1R5L Air Solenoid Valve
The Festo VSVA-B-P53E-ZH-A1-1R5L is a high-performance air solenoid valve designed for precise and reliable pneumatic control. Featuring a 5/3 exhausted valve function and pilot-controlled operation, this valve ensures stable switching behavior and optimized airflow in industrial pneumatic systems.
Manufacturer: Festo
Type: Air Solenoid Valve
Model: VSVA-B-P53E-ZH-A1-1R5L
MRN: 534550
| Valve Function | 5/3, Exhausted |
| Actuation Type | Electrical |
| Structural Design | Piston Gate Valve |
| Type of Control | Pilot-Controlled |
| Pilot Air Supply Port | External |
| Pilot Pressure | 3 bar ... 8 bar |
| Operating Voltage | 24 V DC |
| Coil Characteristics | 24 V DC, Low-Current Phase 1.0 W, High-Current Phase 2.4 W |
| Operating Pressure | -0.09 MPa ... 1.6 MPa |
| Operating Pressure | -0.9 bar ... 16 bar |
| Normal Nominal Flow Rate (DIN 1343) | 1000 l/min |
| Flow Rate of Pneumatic Valve | 1400 l/min |
| Flow Rate on Individual Sub-Base | 1100 l/min |
| Optimized Flow Rate (Pneumatically Concatenated) | 1000 l/min |
| b-Value | 0.3 |
| C-Value | 2.9 l/sbar |
| Pneumatic Working Port | Sub-base, Size 26 mm according to ISO 15407-1 |
| Nominal Width | 9 mm |
| Width | 26 mm |
| Width Dimension | 27 mm |

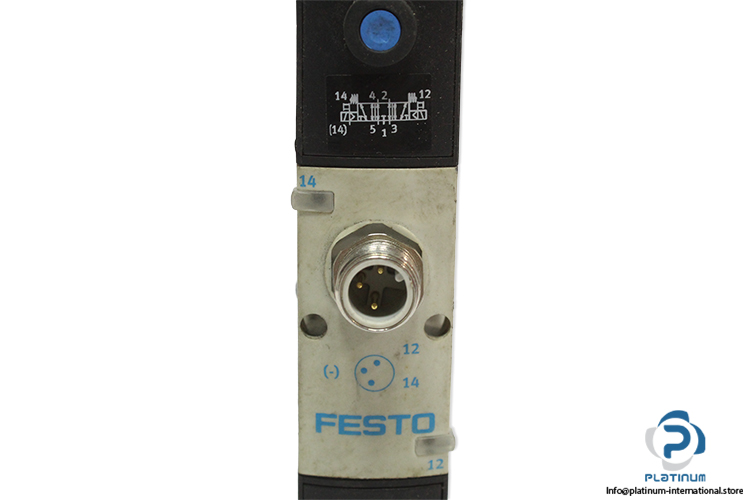

| Electrical Connection | 3-Pin, M12x1, Central Plug, Round Design |
| Housing Material | Die-Cast Aluminum |
| Ambient Temperature | -5 °C ... 50 °C |
| Temperature of Medium | -5 °C ... 50 °C |
