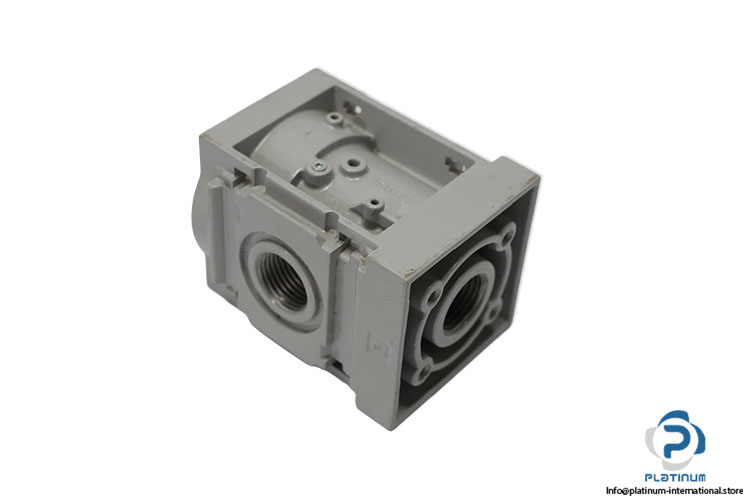

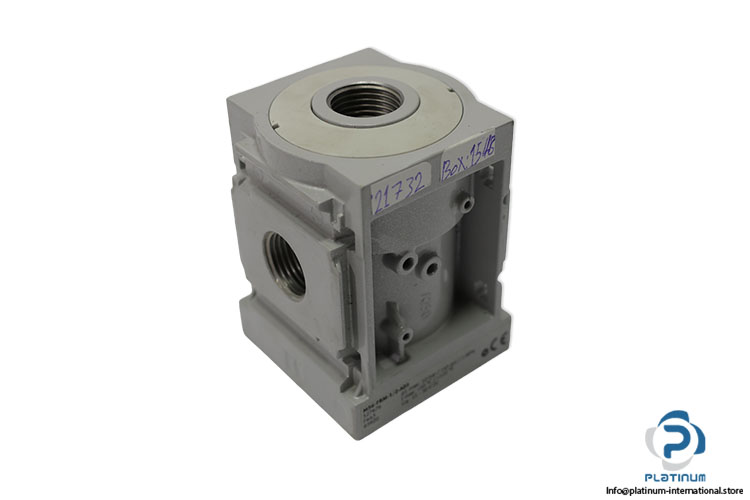

Festo MS6-FRM-1/2-AD1 Branching Module
Used
In stock1 unitReady to ship
Branching Module The FESTO MS6-FRM-1/2-AD1 is a pneumatic branching module with G 1/2 connection, high flow capacity, and 0–20 bar operating pressure for industrial air distribution.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 527676 |
| Media | Compressed Air / Inert Gases |
| Pressure Gauge | G1/4 Prepared, G1/8 Prepared |
| Operating Pressure | 0 ... 20 bar |
| Standard Nominal Flow Rate (Main Flow Direction 1+2) | 3200 l/min / 14700 l/min |
| Standard Nominal Flow Rate (Outlet at Top) | 2700 l/min / 6000 l/min |
| Standard Nominal Flow Rate (Outlet Down) | 2800 l/min / 6400 l/min |
| Operational Voltage | 15 … 30 V DC |
| Material | Die-Cast Aluminium |
| Pneumatic Connection | G 1/2 |
| Ambient Temperature | -10 … 60 °C |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103543 |
| Weight | 0,43 |
