FYH UKP 206 J Pillow Block Ball Bearing Unit
FYH UKP206 J Pillow Block Ball Bearing Unit, 25 mm bore diameter, 165 mm length, 84 mm height, 19.5 kN dynamic load, 11.3 kN static load for industrial use.

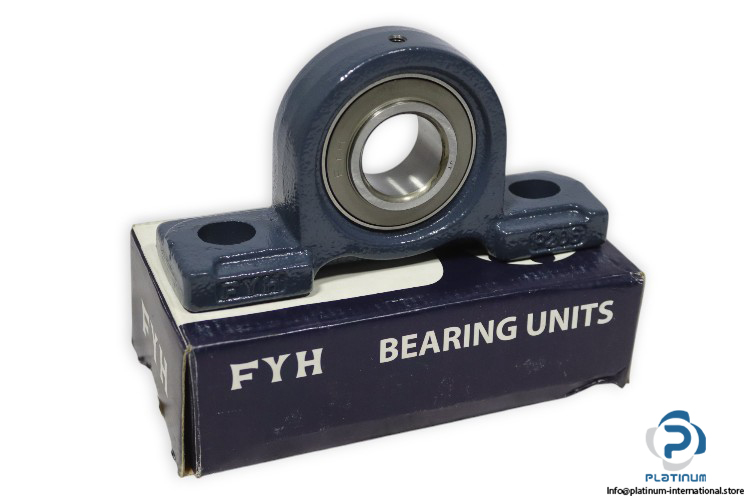

FYH UKP206 J Pillow Block Ball Bearing Unit
The FYH UKP206 J Pillow Block Ball Bearing Unit is a high-performance bearing unit designed for a variety of industrial applications. With a 25 mm bore diameter and built to handle both dynamic and static loads, this unit offers excellent reliability and durability. Its overall length of 165 mm and overall height of 84 mm make it ideal for various mounting and machine configurations.
🔧 Technical Specifications:
- Manufacturer: FYH
- Type: Pillow Block Ball Bearing Unit
- Model: UKP206 J
- Housing No.: P 206
- Bearing No.: UK 206
- Bore Diameter: 25 mm
- Overall Length: 165 mm
- Overall Height: 84 mm
- Width of Inner Ring: 38 mm
- Distance Between Attachment Bolts: 121 mm
- Diameter of Attachment Bolt Hole: 17 mm
- Dynamic Load Rating: 19.5 kN
- Static Load Rating: 11.3 kN
- Fitting Code: J
- Tolerance Class of Spherical Bore: J7
The UKP206 J bearing unit is known for its superior performance, capable of handling heavy loads while maintaining precise alignment and durability. Its rugged design and high load capacities make it a reliable choice for industrial machinery.
