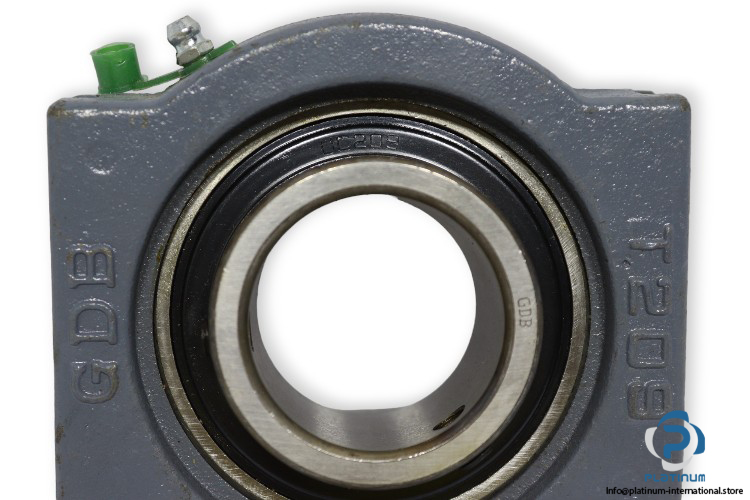

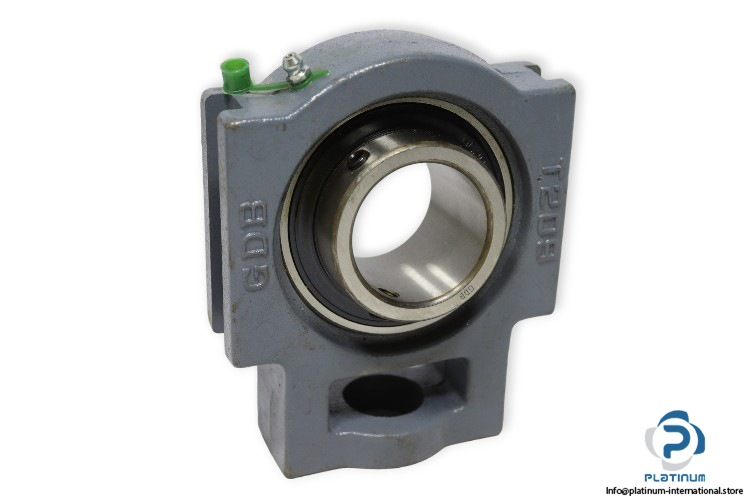

GDB UCT209 Take UP Ball Bearing Unit

Manufacturer: GDB
Type: take up ball bearing unit
Model: UCT 209
Housing No.: T209
Bearing No.: UC209

Shaft diameter: 45 mm
Overall width: 49 mm
Overall height: 117 mm
Distance between bottoms of piloting grooves: 102 mm
Overall length w: 145 mm
Distance from attachment end face to center line of spherical seat diameter h: 89 mm
Width of inner ring B: 49.2 mm
Housing type: Take-up
