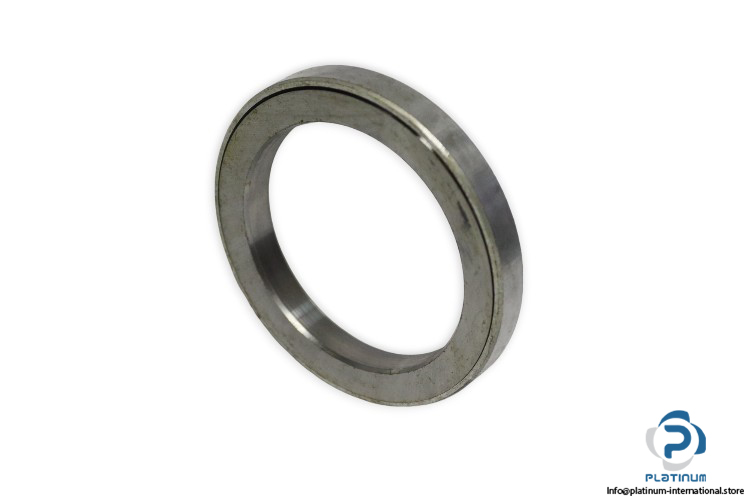

GMN L 60X80X10 Labyrinth Seal
Manufacturer: GMN
Type: LABYRINTH SEAL
Model: L-60X80X10
Design: L (Without drain grooves)
Inner Diameter: 60 mm
Outer Diameter: 80 mm
Width: 10 mm
Gap Diameter: 76 mm
Outer ring: Aluminum
Inner ring: Steel
Axial Clearance S ax: 0.40 mm
Range of temperature: -40 °– 200 °C
Max. Speed: 18900 RPM
Shaft & Housing Chamfer: 1mm × 15°
Shaft Tolerance: h6
Housing Tolerance: K7
Shaft & Housing Surface: Rz ≤ 16µm ; Ra ≤ 3.2µm
