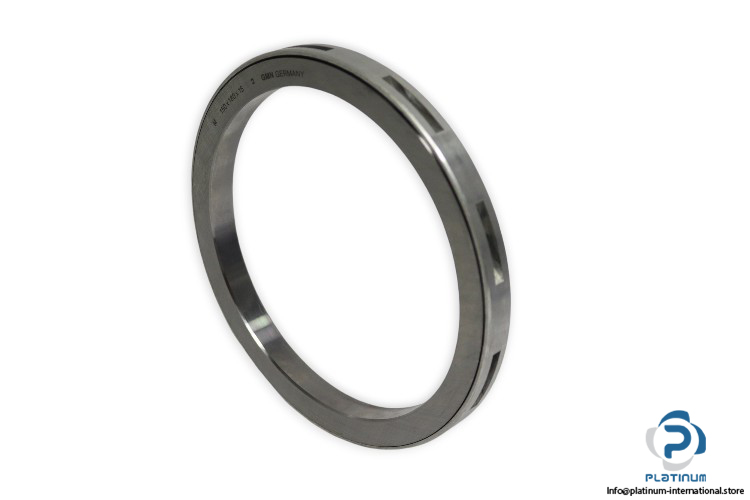

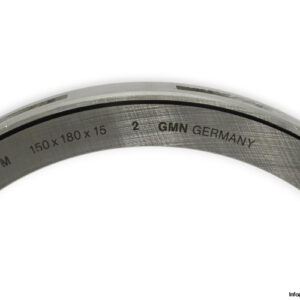

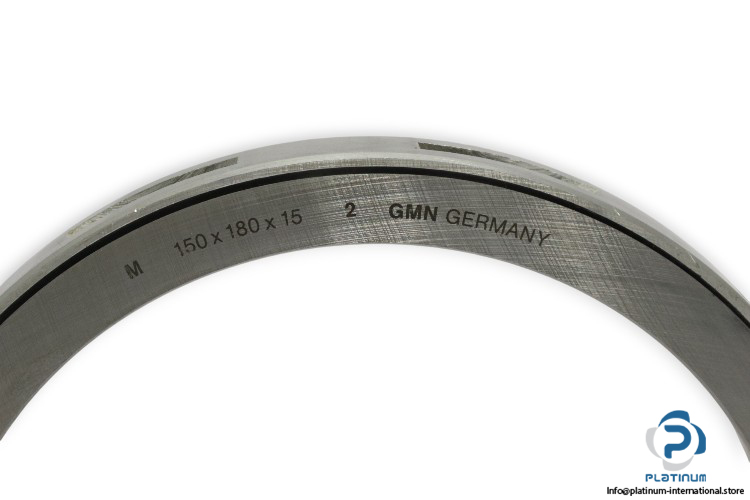

GMN M 150X180X15 Labyrinth Seal

Manufacturer: GMN
Type: LABYRINTH SEAL
Model: M150X180X15

Design: M (with groove)
Inner Diameter: 150 mm
Outer Diameter: 180 mm
Width: 15 mm
Gap Diameter: 175 mm
Drain Groove Width: 5 mm
Outer ring: Aluminum
Inner ring: Steel
Axial Clearance S ax: 0.7 mm
Range of temperature: -40 °– 200 °C
Max. Speed: 6,800 RPM
Shaft & Housing Chamfer:  1.5mm × 15°
Shaft Tolerance: h6
Housing Tolerance: K7
Shaft & Housing Surface: Rz ≤ 16µm ; Ra ≤ 3.2µm
