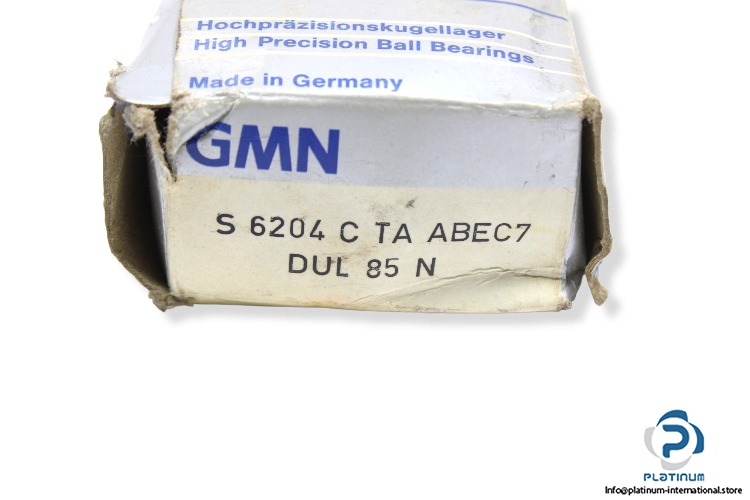

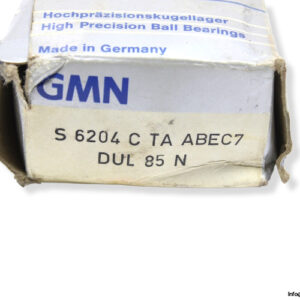

GMN S 6204 C TA ABEC7 Angular Contact Ball Bearing

Manufacturer: GMN

Type: Angular Contact Ball bearing

Model: S6204CTA ABEC7 DUL 85 N

Series: S, Standard spindle bearings

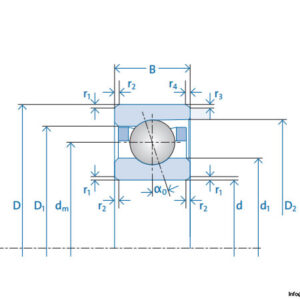

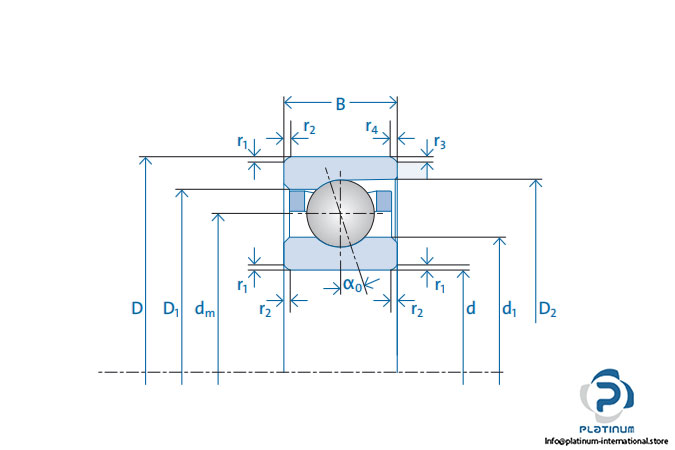

Dimensions

Bore diameter d: 20 mm

Outer diameter D: 47 mm

Width B: 14 mm

Nominal contact angle α₀: 15°

Basic load ratings:

Dynamic C: 16900 N

Static C₀: 10000 N

Speed with oil lubrication: 51000 rpm

Speed with grease lubrication: 38000 rpm

Precision: ABEC7, corresponds to Tolerance class P4

Matching: D, 2 bearings with Universal matching

Preload: UL, light preload

Cage: TA, Laminated phenolic resin cage guided in outer ring
