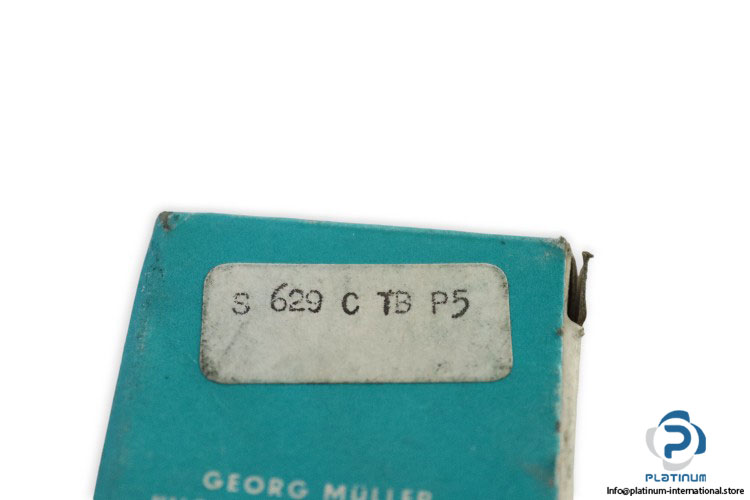

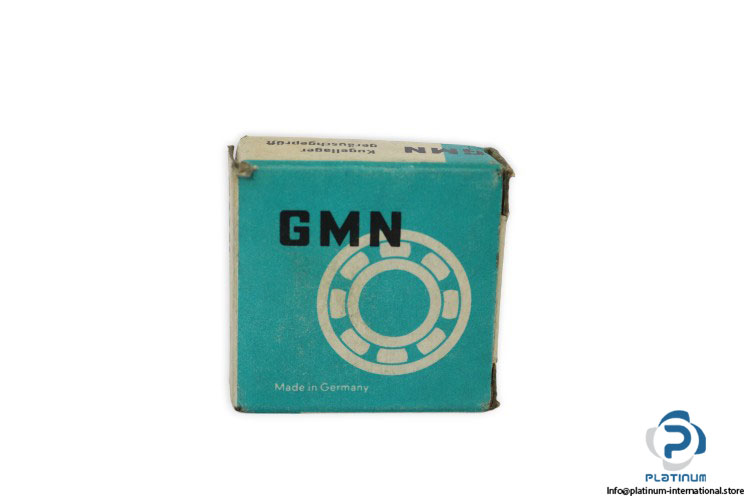

GMN S 629 C TB P5 Angular Contact Ball Bearing

Manufacturer: GMN
Type: ANGULAR CONTACT BALL BEARING
Model: S-629-C-TB-P5

Dimensions
Bore diameter d: 9 mm
Outer diameter D: 26 mm
Width B: 8 mm
Series:  Standard spindle bearings
Nominal contact angle α0: 15°
Basic load ratings
Dynamic C: 3750 N
Static C0: 1710 N
Speed with oil lubrication: 102000 rpm
Speed with grease lubrication: 76000 rpm
Precision: Tolerance class P5
Material: Laminated phenolic resin
Fabrication: Two pieces , riveted
Cage: TB, Laminated phenolic resin cage guided in inner ring
Type: High precision , Spindle ball bearings
Permissible operating temperature: 120°C
