Hager ES430 Contactor
New
In stock10 unitsReady to ship
Hager Override Contactor ES 430 with 13 kW contact power at 400 V AC, 20 A current rating, and a thermal rated current of 20 A. Designed for efficient operation in industrial and commercial circuits.
1320354006185aAbsorbedACAC1closeContactContactorCurrentHagerIndustrialInrushkWmmNormallyOperatingoperationalOverridePowerRatedTemperatureThermalVvoltagex
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

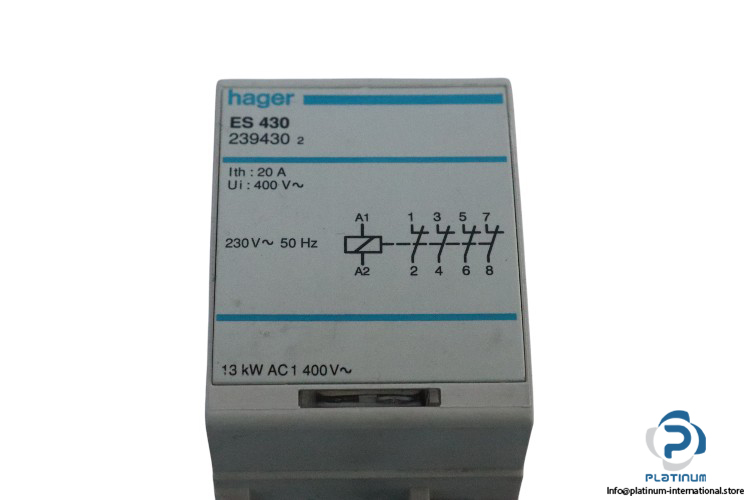

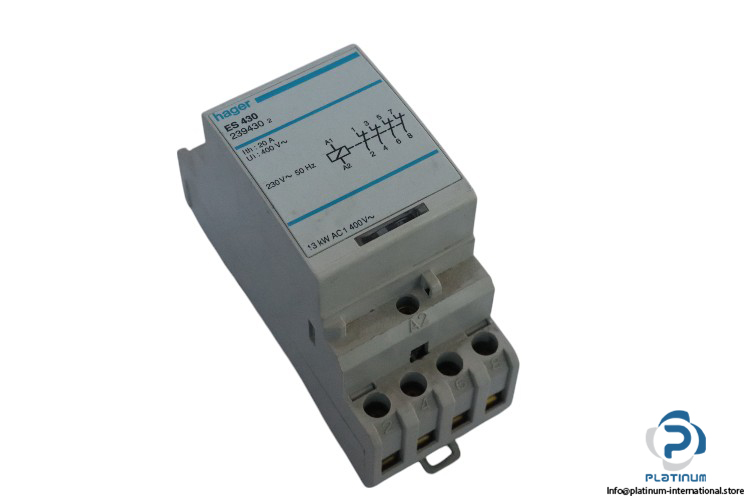

Hager Override Contactor ES 430
Hager Override Contactor ES 430 is a high-quality contactor designed for efficient switching and protection in electrical circuits. It offers reliable performance in demanding environments, with features optimized for industrial and commercial applications.
- Manufacturer: Hager
- Type: Override Contactor
- Model: ES 430
- Part No.: 239430
Technical Data:
- Rated Operational Voltage (Ue): 400 V AC
- Frequency: 50 Hz
- Rated Insulation Voltage (Ui): 400 V AC
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Command Voltage: 230 V AC
- Contact Power: 13 kW at 400 V AC
- Acceptable Current Rating with AC1: 20 A
- Thermal Rated Current (Ith): 20 A
- Contact: 4 Normally Close
- Inrush Power Absorbed: 20 VA
- Operating Consumption: 5 VA
- Total Power Loss under In: 4.8 W
- Power Loss per Contact: 1.2 W
- Operating Temperature: -10 to 50 °C
- Dimensions: 61 x 85 x 35 mm
