Hager HIM408 Switch Disconnector
New
In stock1 unitReady to ship
Hager Switch Disconnector HIM 408 with 4 poles, 80 A rated operational current, and 50 kA short-circuit current. Designed for safe electrical disconnection with reliable protection.
44155060947-380aACCurrentDisconnectionDisconnectorElectricalHagerIECImpulseIndustrialkAPolesProtectionRatedSafetyShort-CircuitSwitchUimpVvoltageWithstand
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

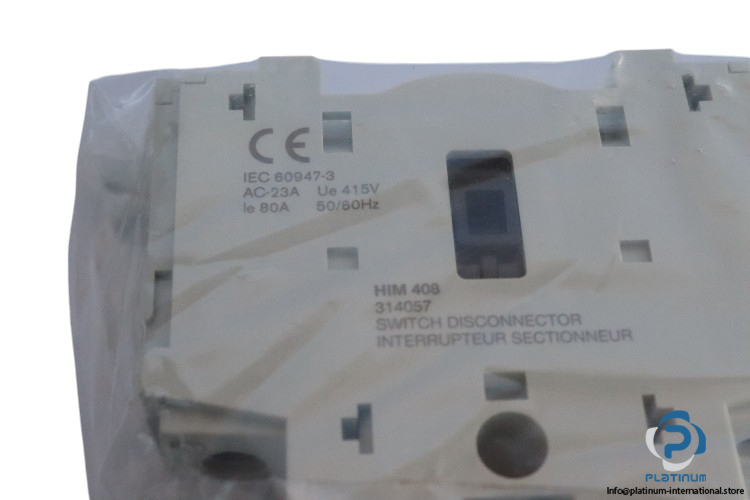

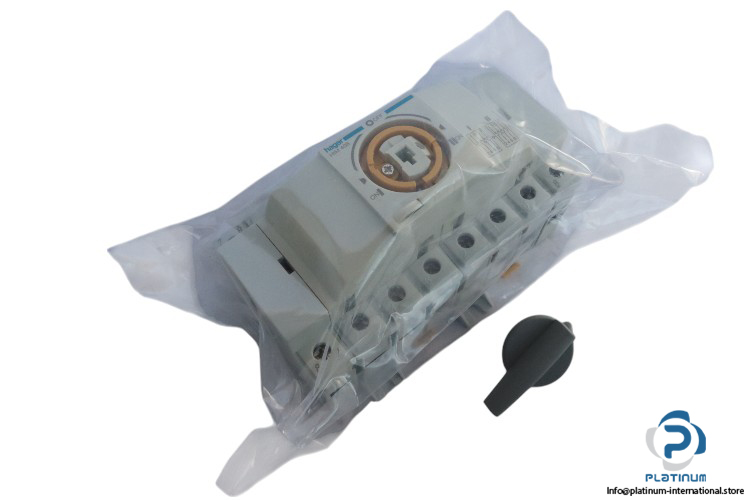

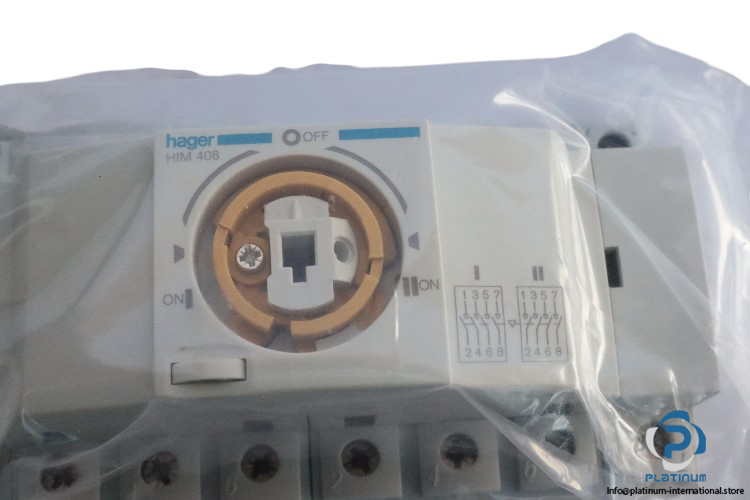

Hager Switch Disconnector HIM 408
Hager Switch Disconnector HIM 408 is designed for safe and reliable electrical disconnection in industrial applications. With high performance and protection, it is built to withstand high operational currents and provide superior short-circuit protection. Below are the key technical specifications:
- Manufacturer: Hager
- Type: Switch Disconnector
- Model: HIM 408
- Part No.: 314057
Technical Data:
- No. of Poles: 4
- Type of Case: Fixed Built-In
- Number of Modules: 8
- Rated Operational Voltage (Ue): 415 V AC
- Rated Operational Current (Ie): 80 A
- Short-Circuit Current with gI-gG Fuses: 50 kA
- Rated Short-Time Withstand Current 1s: 1.5 kA
- Frequency: 50/60 Hz
- Rated Insulation Voltage (Ui): 800 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Total Power Loss Under In: 9.6 W
- Type of Order: Short Thumb-Grip
- Standard: IEC 60947-3
- Operating Temperature: -20 to 70 °C
