Hager MZ522N Auxiliary Contact Module
New
In stock1 unitReady to ship
Hager Auxiliary Contact Module MZ 522N with 1A contact rating at 230 V AC, rated insulation voltage of 690 V, and a compact width of 9 mm. Designed for reliable signaling and control in industrial electrical systems.
06601A23060947690947ACAuxiliaryCompactContactcontacts.ControlDesignElectricalENHagerIECImpulseInsulationModuleNormallyOpenRatedRatingVVDEvoltageWithstand
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

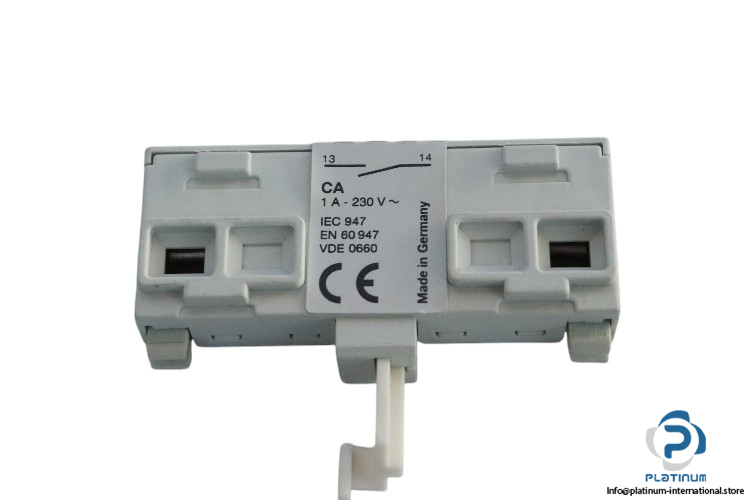

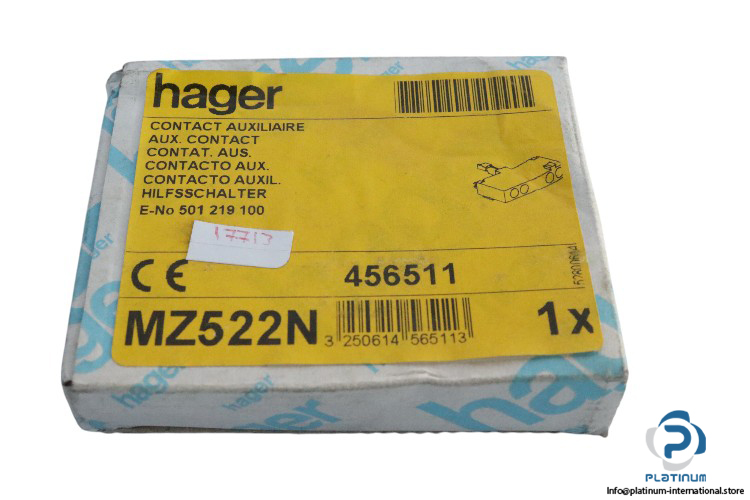

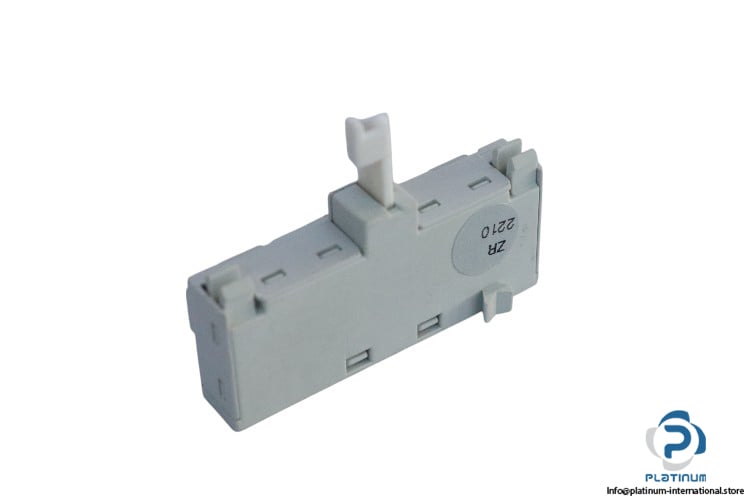

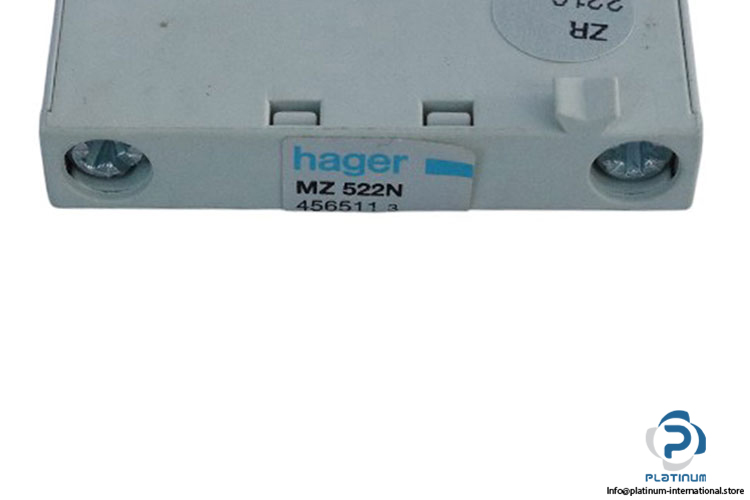

Hager Auxiliary Contact Module MZ 522N
Hager Auxiliary Contact Module MZ 522N is designed for use in electrical circuits requiring auxiliary contacts. This module provides reliable performance for controlling and signaling, with high insulation voltage and optimal operational temperature ranges. Below are the key technical specifications:
- Manufacturer: Hager
- Type: Auxiliary Contact Module
- Model: MZ 522N
- Part No.: 456511
Technical Data:
- Contact Rating: 1A, 230 V AC
- Frequency: 40/60 Hz
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 4000 V
- Number of Contacts (Normally Open Contacts): 1
- Total Power Loss Under In: 0.01 W
- Tightening Torque: 1.3 Nm
- Temperature: -10 to 50°C
- Standard: IEC 947, EN 60947, VDE 0660
- Degree of Pollution: 3
- Operating Temperature: -25 to 55°C
- Depth: 68 mm
- Width: 9 mm
